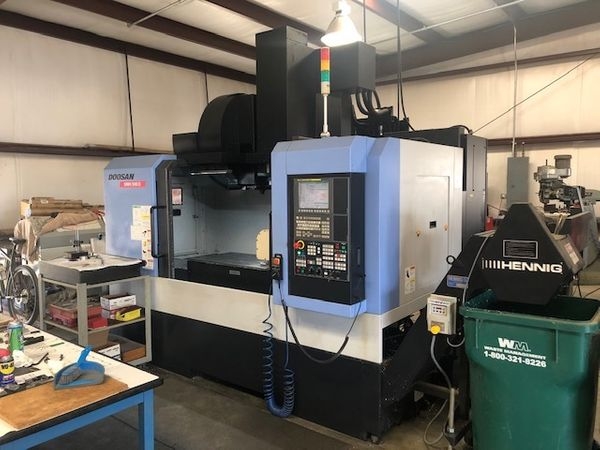

Used DOOSAN DNM 500 II Vertical Machining Center

Pre-owned DOOSAN DNM 500 II 2015 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Fanuc 32i CNC Control control. This CNC Machine is currently located in California. This DOOSAN Vertical Machining Center is available for a limited time. Get a quote today on this DNM 500 II before it's gone.

Table Size: 47.2" x 21.2"
Max Table Load: 1,764 LBS
X Axis Travel: 40"
Y Axis Travel: 21.2"
Z Axis Travel: 21.01"
Spindle Speed: 12,000 RPM
Spindle Motor: 20 HP
Spindle Taper: 40 CT
Tool Changer: 30 ATC

Equipped With:
Fanuc 32-iMB CNC Control
Tsudakoma TN-161 4th and 5-Axis Trunnion Table (160mm)
Prepped for Renishaw RMP-40 Probe System
280 PSI Thru Spindle Coolant
Programmable Coolant
Chip Conveyor with Auger System
Remote Jog Handle
USB and SD Card
Spindle Orientation

Less than 4,800 Spindle Hours

PLEASE NOTE: Probe is NOT coming with but Probe was Installed and Ready for Replacement.

Dimensions: 134" x 89" x 104"
Weight: 14,330 LBS
Fanuc 32i CNC Control
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
5 Axis
Cris (Located in CA)
