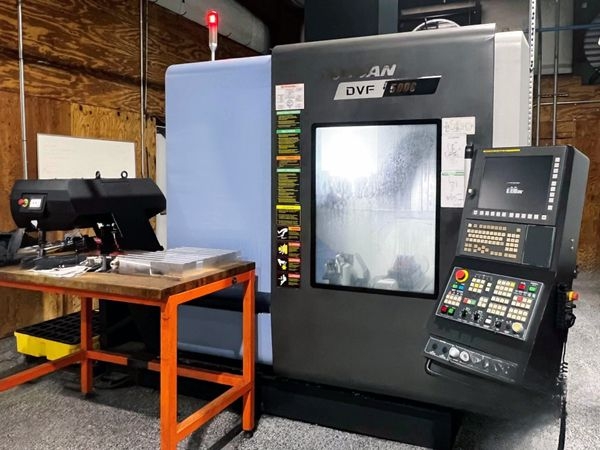

This 2020 DOOSAN DVF 5000 Vertical Machining Center is a high-performing metalwork tool that has been utilized for shaping aluminum material. This machine stands out because it has low use hours which suggests it has not been...Read More
Notify Me:
Specs:
Y Axis Travel: 17.7"
X Axis Travel: 24.6"
Z Axis Travel: 15.7"
Spindle Motor: 30 HP
Spindle Speed: 18,000 RPM
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,575 IPM
Travel Distance B-axis: +110°, -30°
Travel Distance C-axis: 360°
Table Size: 500 mm (19.7 in.)
Max Part Diameter: 550 mm (21.7 in.)
Max Part Height: 450 mm (17.7 in.)
Max Load: 400 kg (882 lbs.)
Table Size: 19.7" x 19.7"
Dimensions: 114" x 87" x 114"
Weight: 16,534 LBS
X Axis Travel: 24.6"
Z Axis Travel: 15.7"
Spindle Motor: 30 HP
Spindle Speed: 18,000 RPM
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,575 IPM
Travel Distance B-axis: +110°, -30°
Travel Distance C-axis: 360°
Table Size: 500 mm (19.7 in.)
Max Part Diameter: 550 mm (21.7 in.)
Max Part Height: 450 mm (17.7 in.)
Max Load: 400 kg (882 lbs.)
Table Size: 19.7" x 19.7"
Dimensions: 114" x 87" x 114"
Weight: 16,534 LBS
Options:
Fanuc 31i- A5
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
5 Axis
Chip Blast
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
5 Axis
Chip Blast
