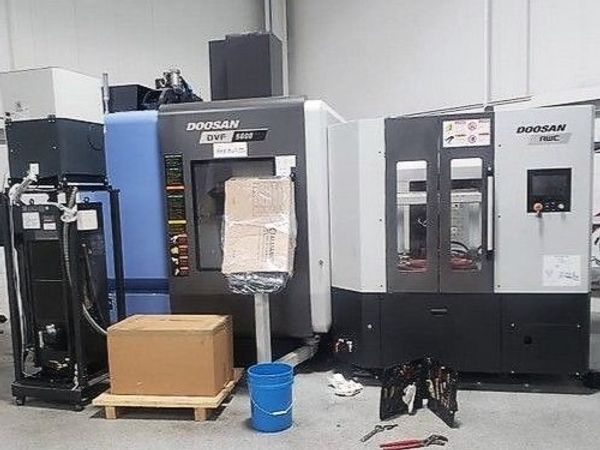

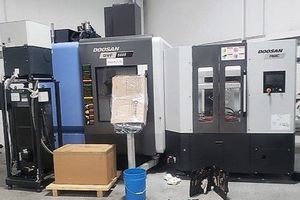

The Doosan DVF 5000 Vertical Machining Center is a 5 Axis machine that is perfect for a wide range of machining applications. This machine is equipped with a 30 HP spindle motor, 18,000 RPM spindle speed, 40 CT spindle taper...Read More
Notify Me:
Rigging:
$2,500
Specs:
Y Axis Travel: 17.7"
X Axis Travel: 24.6"
Z Axis Travel: 15.7"
Travel Distance B-axis: +110°, -30°
Travel Distance C-axis: 360°
Spindle Motor: 30 HP
Spindle Speed: 18,000 RPM
Spindle Taper: 40 CT
Tool Changer: 120 ATC
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,575 IPM
Table Size: 500 mm (19.7 in.)
Max Part Diameter: 550 mm (21.7 in.)
Max Part Height: 450 mm (17.7 in.)
Max Load: 400 kg (882 lbs.)
Table Size: 19.7" x 19.7"
Dimensions: 114" x 87" x 114"
Weight: 16,534 LBS
X Axis Travel: 24.6"
Z Axis Travel: 15.7"
Travel Distance B-axis: +110°, -30°
Travel Distance C-axis: 360°
Spindle Motor: 30 HP
Spindle Speed: 18,000 RPM
Spindle Taper: 40 CT
Tool Changer: 120 ATC
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,575 IPM
Table Size: 500 mm (19.7 in.)
Max Part Diameter: 550 mm (21.7 in.)
Max Part Height: 450 mm (17.7 in.)
Max Load: 400 kg (882 lbs.)
Table Size: 19.7" x 19.7"
Dimensions: 114" x 87" x 114"
Weight: 16,534 LBS
Options:
Fanuc
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
5 Axis
Renishaw RMP600 Spindle Probe
Renishaw RTS TTP Tool Setter
Renishaw Cat4
Renishaw NC4 Universal Tool Setting Probe
18,000 RPM Spindle
120 Automatic Tool Changer
8 Pallet Automatic Workpiece Changer
LNS Turbo Super Fine Chip Conveyor
3 Dimensional Cutter Compensation
Workpiece Setting Error
LNS Fox Mist Collector with WS2-700 High Efficiency multi-application 3 filtration stage unit
Located in Chicago, Il
Kennametal Tooling Certificate Available!
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
5 Axis
Renishaw RMP600 Spindle Probe
Renishaw RTS TTP Tool Setter
Renishaw Cat4
Renishaw NC4 Universal Tool Setting Probe
18,000 RPM Spindle
120 Automatic Tool Changer
8 Pallet Automatic Workpiece Changer
LNS Turbo Super Fine Chip Conveyor
3 Dimensional Cutter Compensation
Workpiece Setting Error
LNS Fox Mist Collector with WS2-700 High Efficiency multi-application 3 filtration stage unit
Located in Chicago, Il
Kennametal Tooling Certificate Available!
