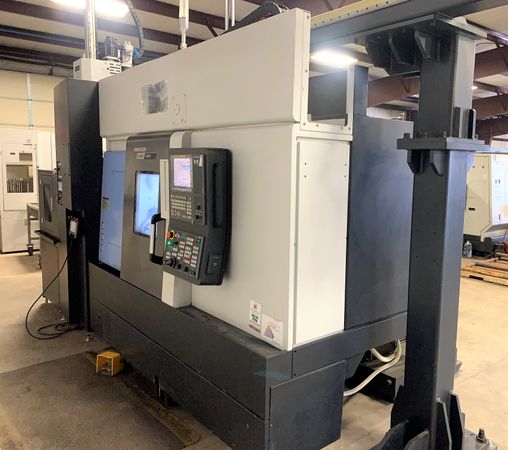

Pre-owned DOOSAN LYNX 2100LYA 2018 CNC Lathe. This CNC Lathe has low hours and is equipped with a Doosan Fanuc i Series control and a GL180 Motion Gantry Loader. This CNC Machine is currently located in USA. This DOOSAN...Read More
Notify Me:
Specs:
Chuck Size: 6"
Spindle Speed: 6,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 8.1"
Z Axis Travel: 22"
Turret Tools: 24 Station
Max Turning Dia: 11.8"
Max Turning Length: 20.1"
Bar Working Diameter: 2"
Max Spindle Torque for Turning: 93.7"
Spindle Through Hole Diameter: 2.4"
Sub
spindle Max. Spindle speed r/min 6000
Sub spindle motor power
(30min./cont.) kW (Hp) 5.5/3.7 (7.4/5.0)
Spindle through hole
diameter mm (inch) 43 (1.7)
Tail stock Tailstock travel mm (inch) 560 (22.0)
Quill diameter mm (inch) 65 (2.6)
Quill travel mm (inch) 80 (3.1)
Quill bore taper MT MT#4
Control NC system - Doosan Fanuc i series / Siemens 840D
Dimensions: 112.2" x 67.3" x 75.6"
Spindle Speed: 6,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 8.1"
Z Axis Travel: 22"
Turret Tools: 24 Station
Max Turning Dia: 11.8"
Max Turning Length: 20.1"
Bar Working Diameter: 2"
Max Spindle Torque for Turning: 93.7"
Spindle Through Hole Diameter: 2.4"
Sub
spindle Max. Spindle speed r/min 6000
Sub spindle motor power
(30min./cont.) kW (Hp) 5.5/3.7 (7.4/5.0)
Spindle through hole
diameter mm (inch) 43 (1.7)
Tail stock Tailstock travel mm (inch) 560 (22.0)
Quill diameter mm (inch) 65 (2.6)
Quill travel mm (inch) 80 (3.1)
Quill bore taper MT MT#4
Control NC system - Doosan Fanuc i series / Siemens 840D
Dimensions: 112.2" x 67.3" x 75.6"
Options:
Doosan Fanuc i Series
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
Y Axis
GL180 Gantry Loader and Unloader
LNS Chip Conveyor
Samchully Chuck
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
Y Axis
GL180 Gantry Loader and Unloader
LNS Chip Conveyor
Samchully Chuck
