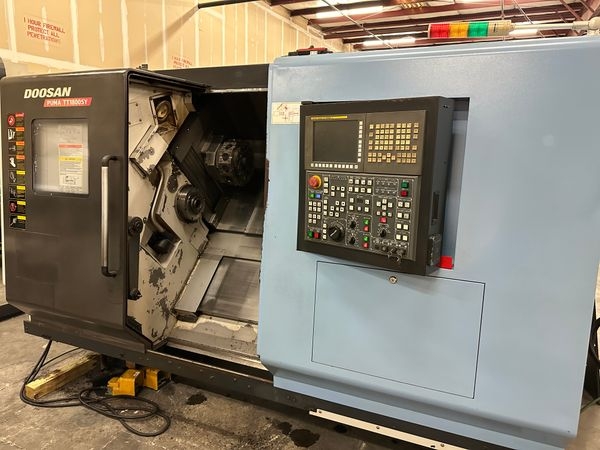

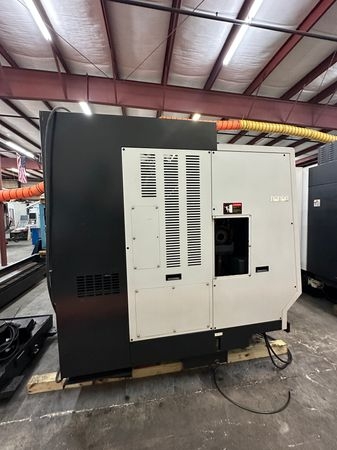

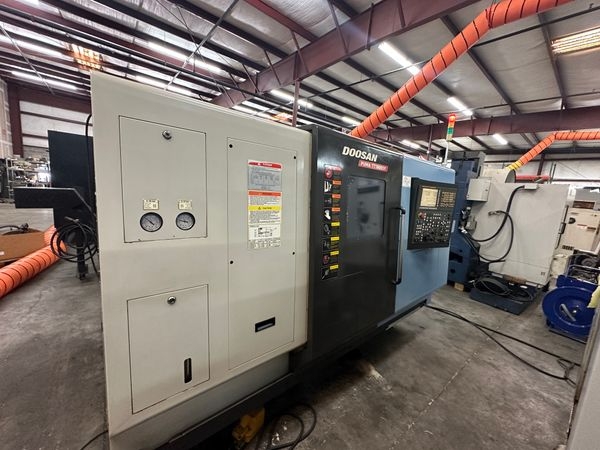

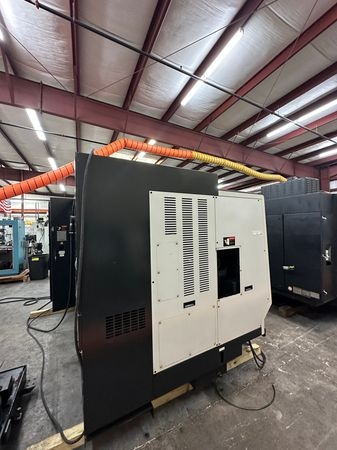

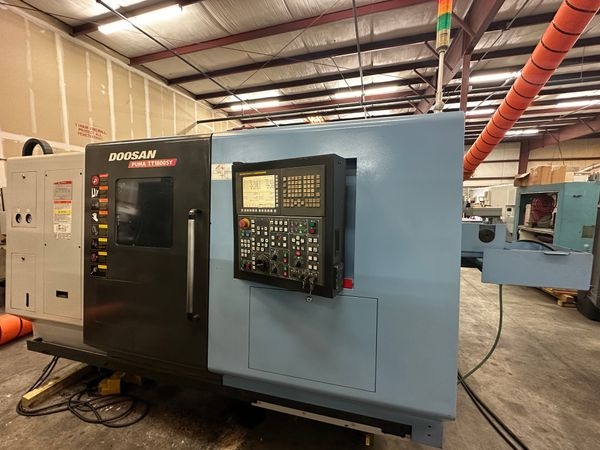

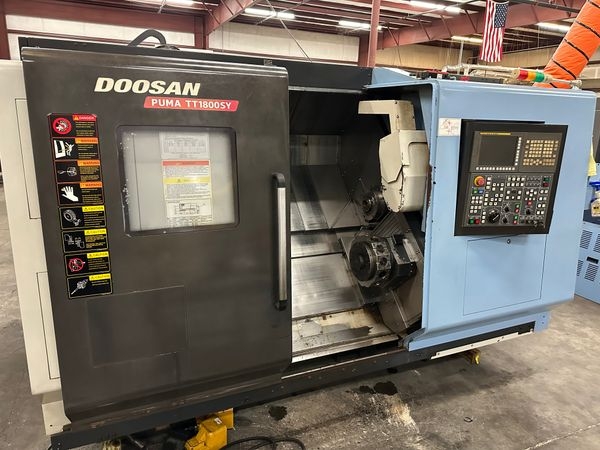

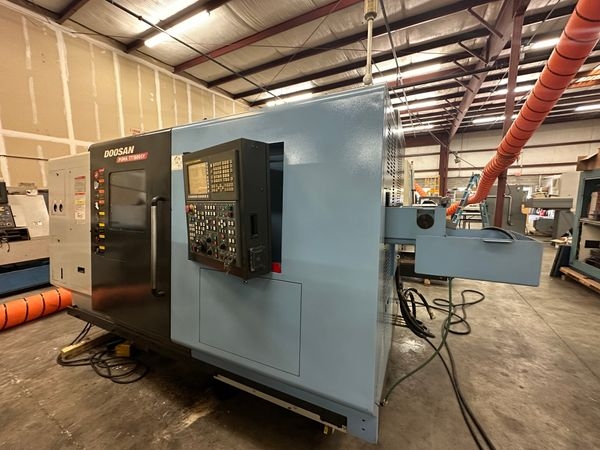

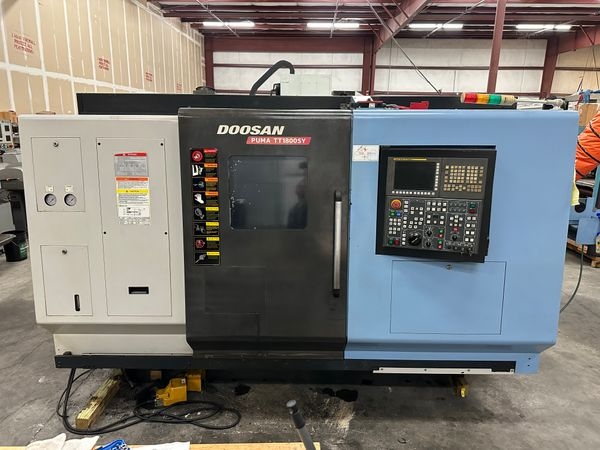

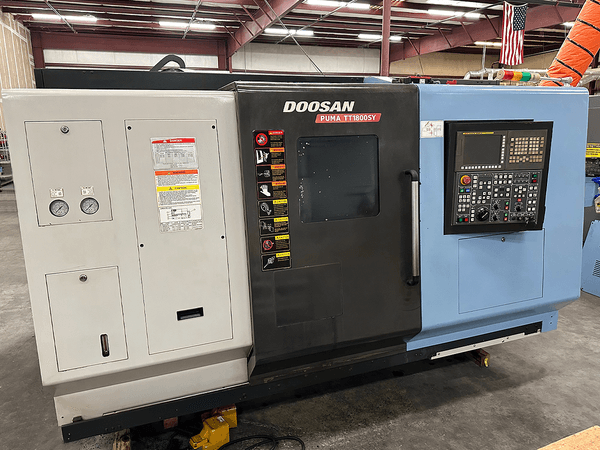

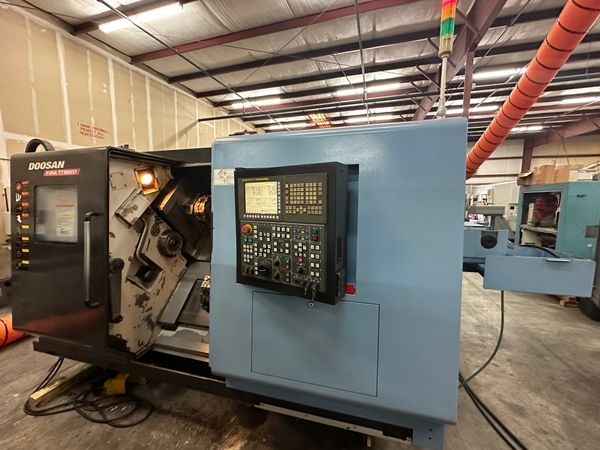

Reserve Met: 2012 DOOSAN PUMA TT1800SY #8228

Bar Capacity: 2.625"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 6.5"
Z Axis Travel: 31.5"
Rapid Rate Z Axis: 944 IPM
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 9.1"
Max Turning Length: 9.1"
Max Swing: 9.1"

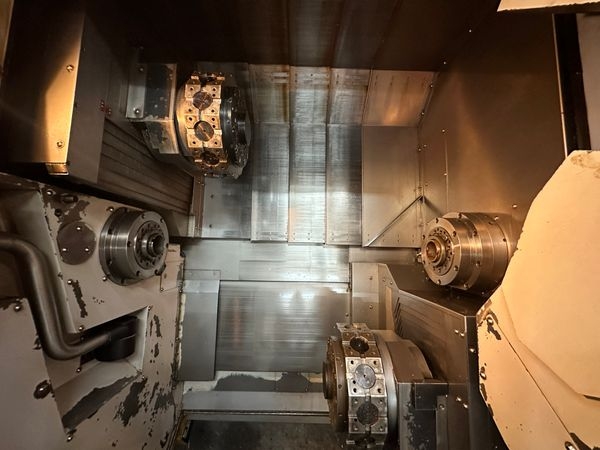

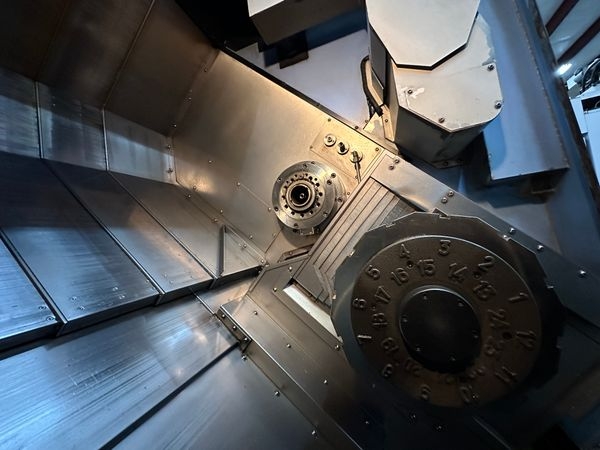

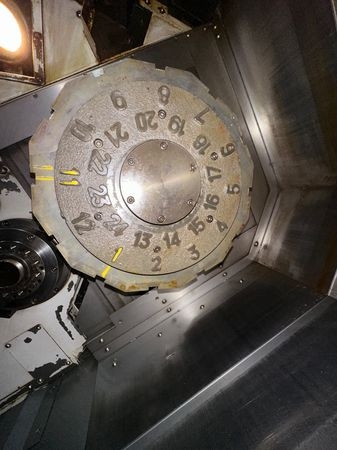

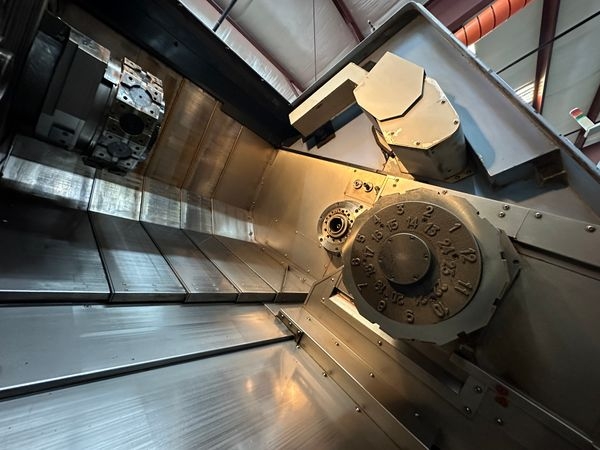

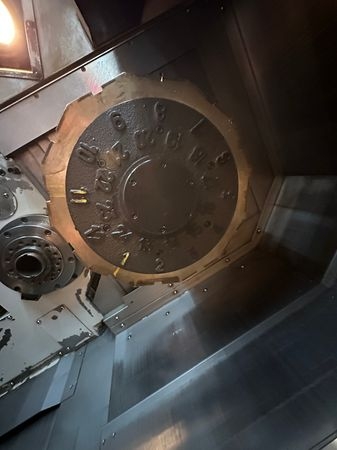

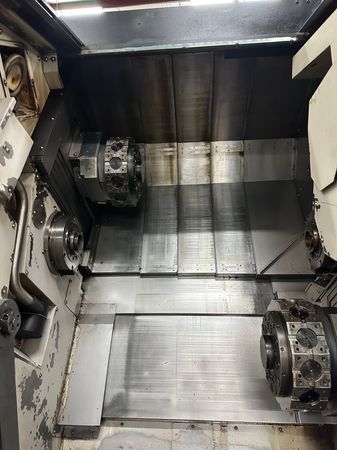

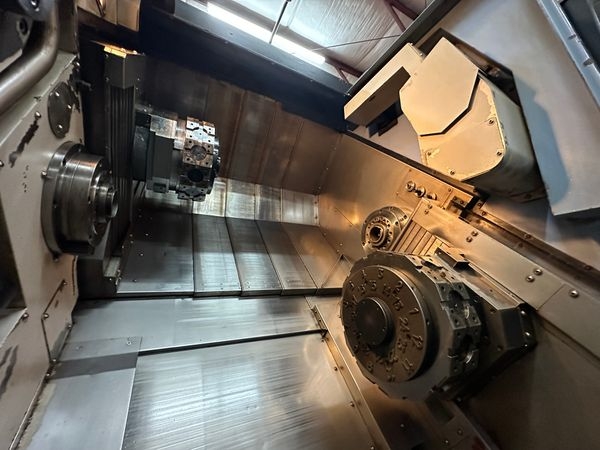

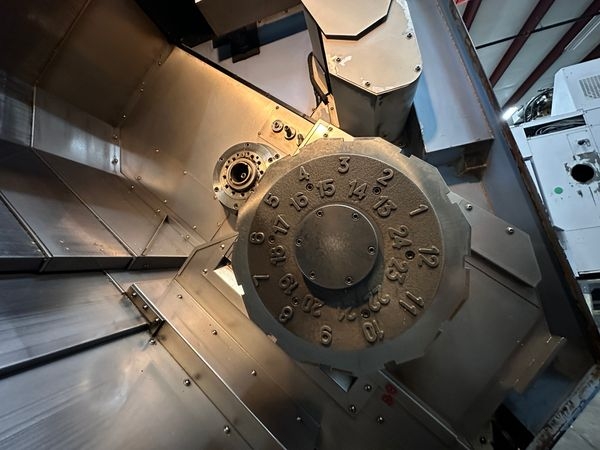

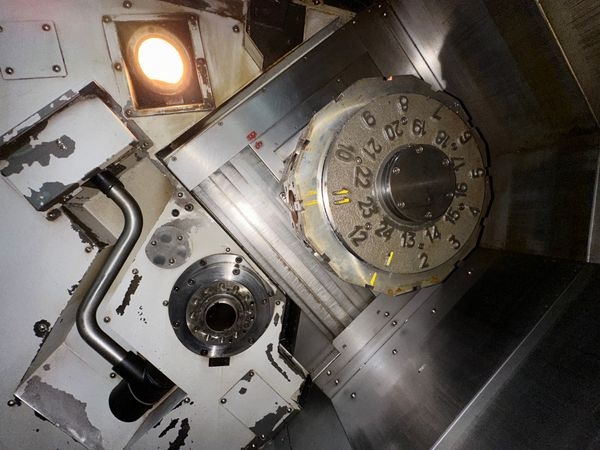

TURRET:
Turret Configuration (Upper + Lower): 24 + 24 (48 Total Stations)
O.D Tool Size: 0.8" x 0.8"
Maximum I.D. Tool Size: 1.3"
Turret Indexing Time: 0.15 Seconds
Maximum Rotary Tool Speed: 5,000 RPM

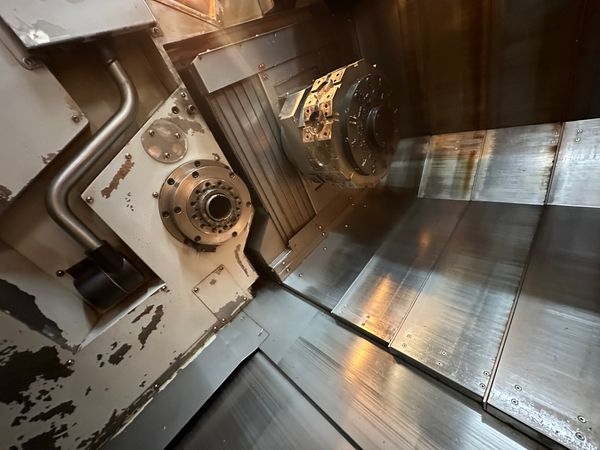

SUB & MAIN SPINDLE:
Spindle Speed: 5000 RPM
Spindle Motor (30 min / Cont): 29.5 HP / 20.1 HP
Maximum Spindle Torque: 153.5 Ft-Lbs
Spindle Nose: A2 #6
Spindle Bearing Diameter: 4.3"
Spindle Inner Diameter: 3.0"
C-Axis Indexing: 360° in .001° increments
Weight: 17,196 LBS

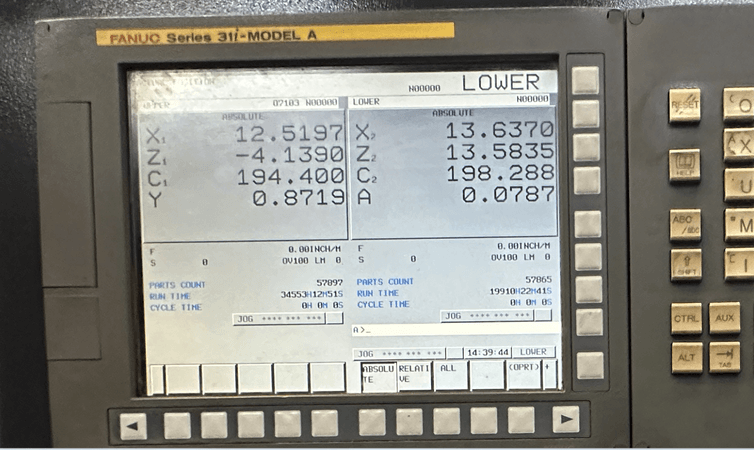

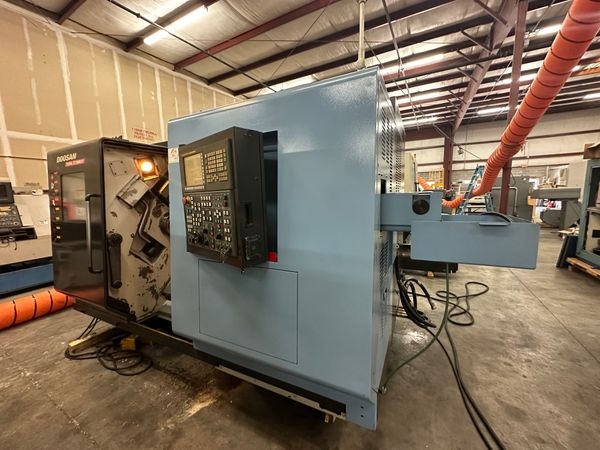

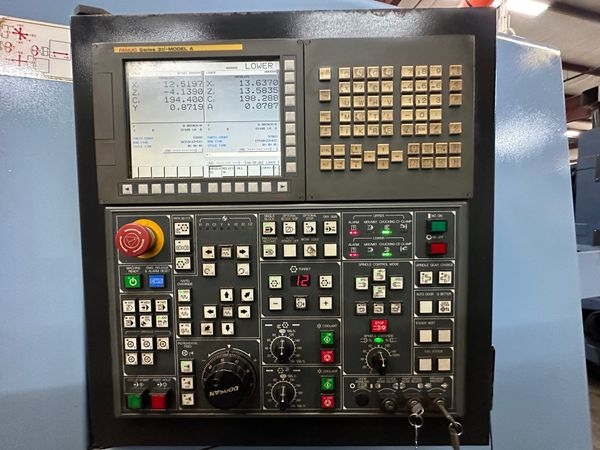

Fanuc

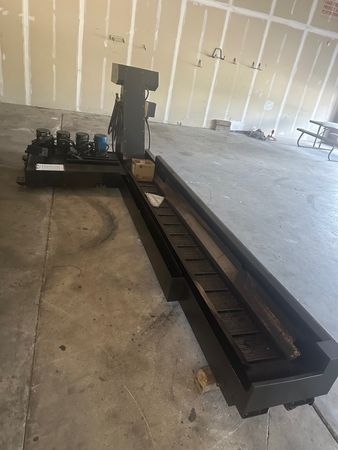

Chip Conveyor

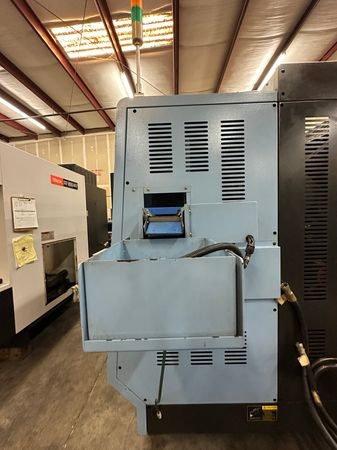

Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
