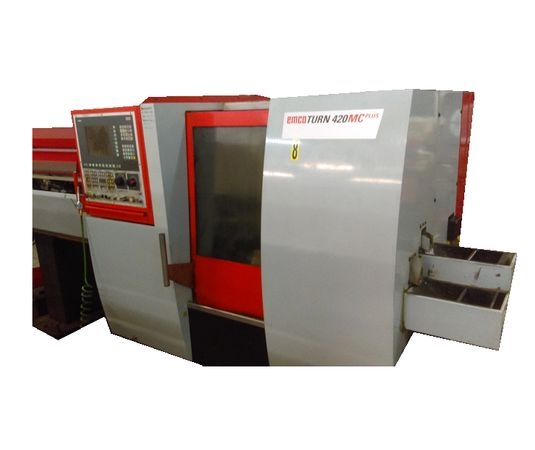

Used EMCO MAIER ET420MCPLUS CNC Lathe
Pre-owned EMCO MAIER ET420MCPLUS 2004 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Ohio. This EMCO MAIER CNC Lathe is available for a limited time. Get a quote today on this ET420MCPLUS before it's gone.
Specs:
Chuck Size (2)5C Collet Chks
Maximum Swing/Over Cross Slide 13.38?/6.3?
Maximum Turning Diameters 6.1?
Maximum Turning Length 9.84?
Distance from Main Spdl to Counter Spdl 16.1?
Maximum Part Length 23.6?
Maximum Bar Capacity 1.02?
X-Axis Travel 3.07?
Z-Axis Travel 8.27?
B-Axis (Sub Spindle) Index 360,000 Degrees
C-Axis 360,000 Degrees
Spindle Nose / Bore 70mm flat / 1.47?
Main Spindle Speeds 5,000 RPM
Main Spindle Motors 12 HP
Sub Spindle Speed / HP 5,000 RPM / 12 HP
Rapid Traverse Rates (X/Z) 472 IPM / 787 IPM
Turret Type 2×12 Pos. (4 ea. Live)
Rotary Tool Speed / HP 5,000 RPM / 2.15 HP
Machine Dimensions LxWxH 86.7? x 59? x 86.7?
Machine Weight 5,720 lbs
Maximum Swing/Over Cross Slide 13.38?/6.3?
Maximum Turning Diameters 6.1?
Maximum Turning Length 9.84?
Distance from Main Spdl to Counter Spdl 16.1?
Maximum Part Length 23.6?
Maximum Bar Capacity 1.02?
X-Axis Travel 3.07?
Z-Axis Travel 8.27?
B-Axis (Sub Spindle) Index 360,000 Degrees
C-Axis 360,000 Degrees
Spindle Nose / Bore 70mm flat / 1.47?
Main Spindle Speeds 5,000 RPM
Main Spindle Motors 12 HP
Sub Spindle Speed / HP 5,000 RPM / 12 HP
Rapid Traverse Rates (X/Z) 472 IPM / 787 IPM
Turret Type 2×12 Pos. (4 ea. Live)
Rotary Tool Speed / HP 5,000 RPM / 2.15 HP
Machine Dimensions LxWxH 86.7? x 59? x 86.7?
Machine Weight 5,720 lbs
Options:
Chip Conveyor
Bar Feeder
Sub Spindle
Bar Feeder
Sub Spindle
Owner:
Steve (Machine Shop in OH)
