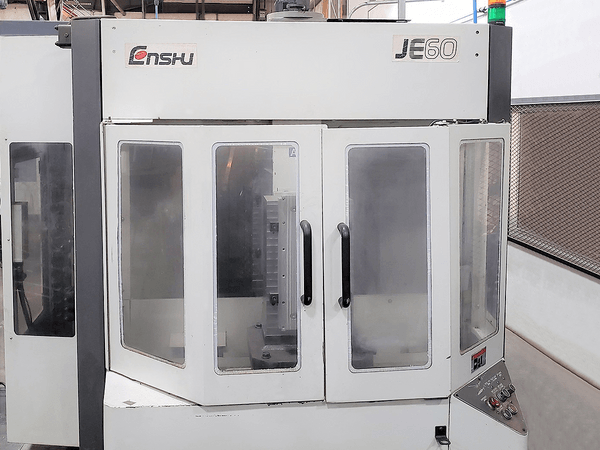

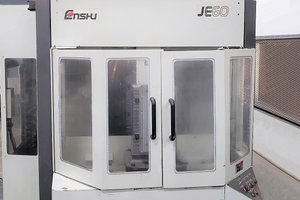

Pre-owned ENSHU JE60 1999 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a YASNAC I80M controller control. This CNC Machine is currently located in Montana. This ENSHU Horizontal Machining Center is available for a limited time. Get a quote today on this JE60 before it's gone.
Seller Needs:
Payment:
Specs:
X Axis Travel: 23.6"
Y Axis Travel: 23.6"
Z Axis Travel: 23.6"
Rapid Rate X Axis: 1,181 IPM
Rapid Rate Y Axis: 1,181 IPM
Rapid Rate Z Axis: 1,181 IPM
Pallet Size: 15.75" x 15.75""
Max Pallet Load: 880 LBS
Spindle Speed: 8,000 RPM
Spindle Motor: 15 HP
Spindle Taper: 40 CT
Tool Changer: 40 ATC
cooler jacket for the spindle.
Spindle bearing diameter of 3.35”
Spindle is dual contact “Big Plus” Cat 40.
Does require specific pull studs on tools.
39+1 tool carousel.
Max tool diameter of 3.1”/5.71” w/ adjacent pockets empty.
Max tool length 7.9”
Max tool weight 6.6 lbs.
Tool to tool change time 1 sec
Chip to Chip 3 seconds.
Spindle ramp up time of 1.5 seconds.
Oversized 1.772” double pretensioned ball screws.
Dimensions: 91" x 143" x 109"
Weight: 19,840 LBS
Y Axis Travel: 23.6"
Z Axis Travel: 23.6"
Rapid Rate X Axis: 1,181 IPM
Rapid Rate Y Axis: 1,181 IPM
Rapid Rate Z Axis: 1,181 IPM
Pallet Size: 15.75" x 15.75""
Max Pallet Load: 880 LBS
Spindle Speed: 8,000 RPM
Spindle Motor: 15 HP
Spindle Taper: 40 CT
Tool Changer: 40 ATC
cooler jacket for the spindle.
Spindle bearing diameter of 3.35”
Spindle is dual contact “Big Plus” Cat 40.
Does require specific pull studs on tools.
39+1 tool carousel.
Max tool diameter of 3.1”/5.71” w/ adjacent pockets empty.
Max tool length 7.9”
Max tool weight 6.6 lbs.
Tool to tool change time 1 sec
Chip to Chip 3 seconds.
Spindle ramp up time of 1.5 seconds.
Oversized 1.772” double pretensioned ball screws.
Dimensions: 91" x 143" x 109"
Weight: 19,840 LBS
