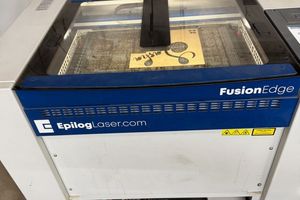

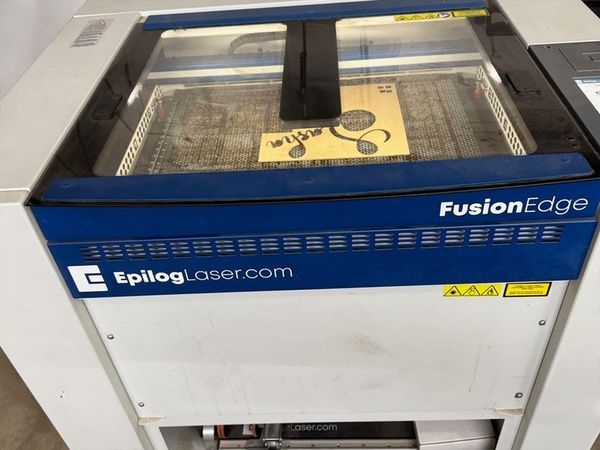

24” x 24”
60-Watt CO2
Air-cooled laser
Designed, Engineered, and Manufactured Golden, CO USA
? Maximum Engraving Area: 24" x 24" (610 x 610mm)
? Maximum Z-Depth: 10" (254 mm)
? Maximum Table Weights for CO2: 25lbs (11.3 kg) for static and 25lbs (11.3 kg) for lifting
? Laser Tube Wattage:
CO2 - 30, 40 ,50, or 60 watt, air-cooled, metal/ceramic tube, 10.6 micrometers
Fiber – 30 watt, air-cooled, includes collimator, 1064 nm, Beam quality: M2 < 1.1
? IRIS™ Camera System – Two overhead cameras
? Software: Epilog Laser Software Suite: Laser Dashboard™ & Epilog Job Manager™
? Memory: Multiple files, up to 1 GB total. Engrave any file size
? Operating Modes: Optimized Raster, Vector, and Combined modes
? Motion Control: High-speed, continuous-loop, brushless DC servo motors using rotary
encoding technology for precise positioning
? X-Axis Bearings: Ground & polished stainless steel, Teflon-coated, self-lubricating bearings
? Advanced B-style double-wide Kevlar precision drive belts
? Resolution: Fully-flexible and user-controlled from 75-1200 dpi
? Speed and Power Control: 120 IPS (3.05m/s) with 5G acceleration. Computer-controlled in
.001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, and
Raster/Vector mode
? Print Interface: USB, Wireless, and 10 Base-T Ethernet. Windows 7/8/10 compatible
? Radiance™ Beam Enhancing Optics for detailed engraving
? Air Assist (Pump not included) to remove heat and combustible gases from cutting surface by
directing a constant stream of compressed air across the cutting surface
? Touch Screen at the Laser : Select between jobs, auto focus the laser, and rerun jobs at the
touch of a button
? Red Dot Pointer for visual laser beam reference point
? Integrated Vector Grid and Vacuum Table
? Electrical: 110 to 240 volts, 50 or 60 Hz, single phase
? Ventilation: 350-400 CFM (595-680 m³/hr.) external exhaust to the outside or an appropriate air
filtration system is required. One 4” (102mm) diameter exhaust port
? Size: (W x D x H) 41.52” x 32.81” 38.04” (1055 x 834 x 967 mm)
? Weight: 225 lbs. (102 kg)
? Class 2 laser product - 1mW CW Maximum 600-700 n
