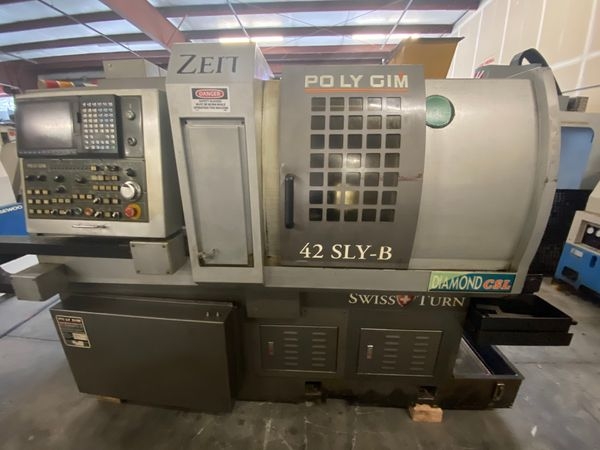

Pre-owned POLYGIM DIAMOND 42SLYB 2012 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Florida. This POLYGIM CNC Lathe is available for a limited time. Get a quote today on this DIAMOND 42SLYB before it's gone.
Notify Me:
Specs:
MAIN SPINDLE
Bar Capacity: 1.65" (42MM)
Spindle Speed: 5,000 RPM
Rapid Rate Z Axis: 1,181 IPM
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 42MM
Max Turning Length: 10.55"
Max Drilling Dia: 26MM
TOOLING SYSTEM (Online Specs)
O.D. Tooling 6
O.D. Tool Dimension 16 x 16 x 120 mm
(Front) I.D. Tooling 2
Tool Dimension 13 mm (ER20)
(Back) I.D Tooling 4
Tool Dimension 13 mm (ER20)
Cross Tooling 6
Tool Dimension 13 mm (ER20)
Speed 6000 r.p.m.
BACK SPINDLE
Back Spindle Hole Dia. 42 mm
Back Spindle Speed 5,000 RPM
Indexing Back Spindle 5 Degree
Dimensions: 86" x 60" x 70"
Weight: 9,400 LBS
Bar Capacity: 1.65" (42MM)
Spindle Speed: 5,000 RPM
Rapid Rate Z Axis: 1,181 IPM
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 42MM
Max Turning Length: 10.55"
Max Drilling Dia: 26MM
TOOLING SYSTEM (Online Specs)
O.D. Tooling 6
O.D. Tool Dimension 16 x 16 x 120 mm
(Front) I.D. Tooling 2
Tool Dimension 13 mm (ER20)
(Back) I.D Tooling 4
Tool Dimension 13 mm (ER20)
Cross Tooling 6
Tool Dimension 13 mm (ER20)
Speed 6000 r.p.m.
BACK SPINDLE
Back Spindle Hole Dia. 42 mm
Back Spindle Speed 5,000 RPM
Indexing Back Spindle 5 Degree
Dimensions: 86" x 60" x 70"
Weight: 9,400 LBS
Options:
Chip Conveyor
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
