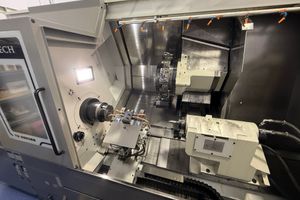

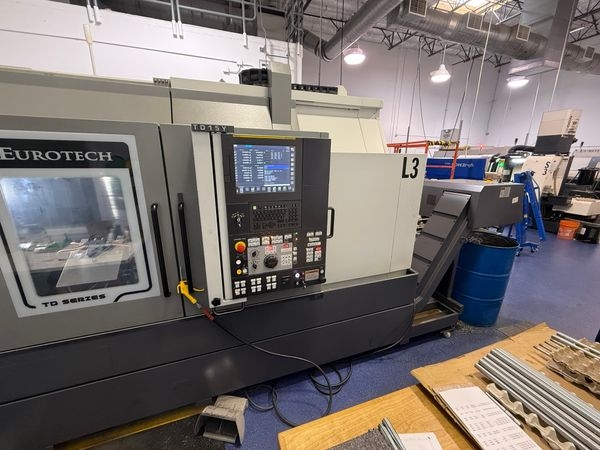

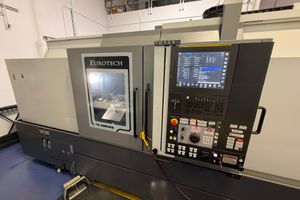

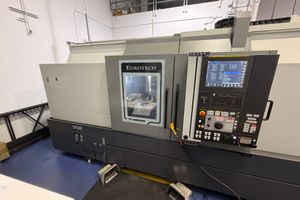

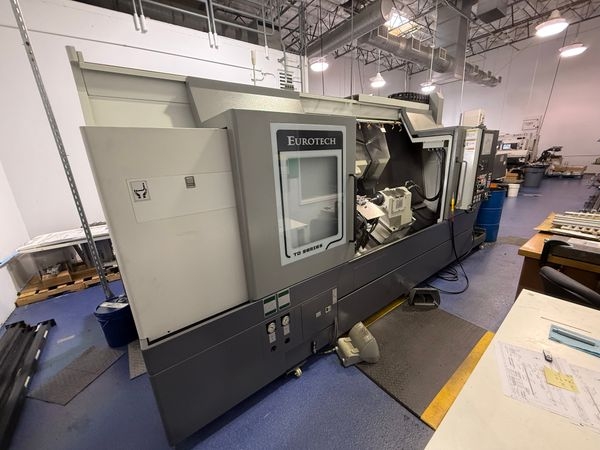

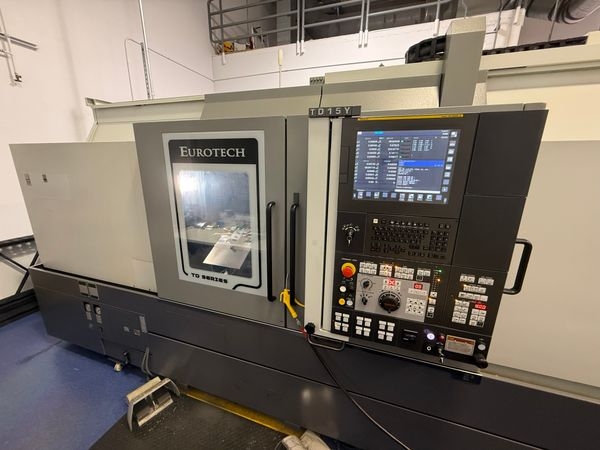

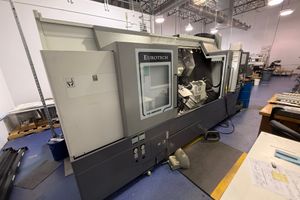

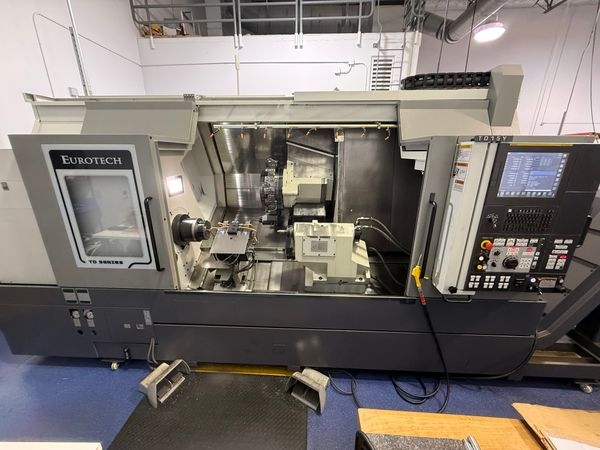

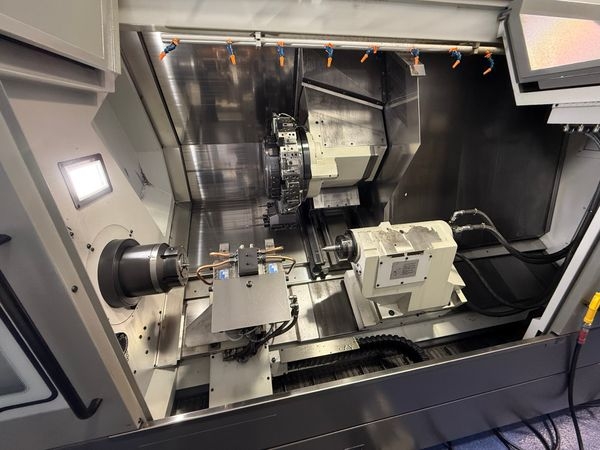

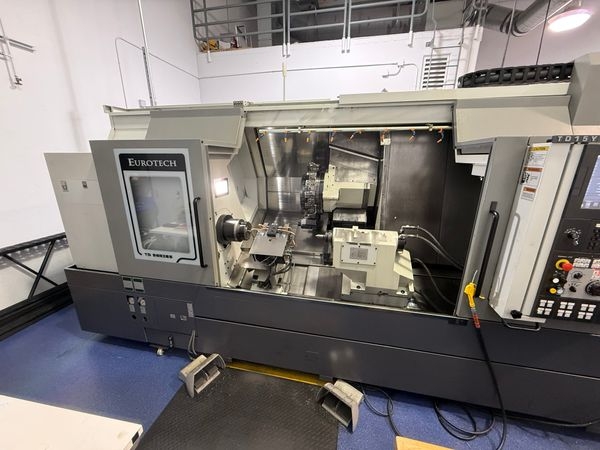

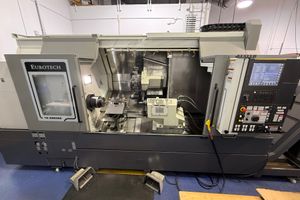

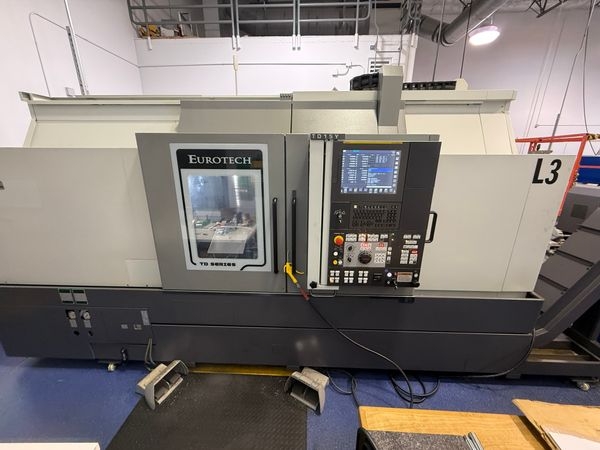

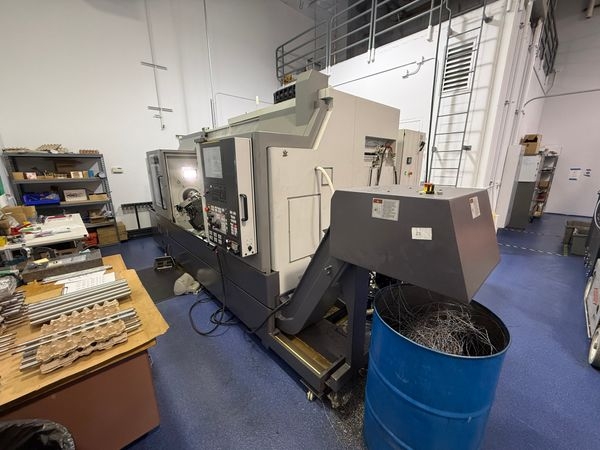

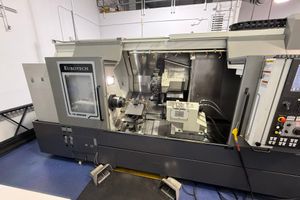

This 2021 EUROTECH TD15Y1350 CNC Lathe is available with a range of features that enhance its operation and functionality. It's equipped with a Fanuc 31iTB CNC control system, ensuring advanced performance and user-friendly i...Read More
Buy Now:
Payment:
Specs:
Bar Capacity: 2.05"
Chuck Size: 8.27"
Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
Turret Tools: 16 Station
Max Turning Dia: 21.65"
Max Swing: 37.4"
Y Axis Travel: -2.60/+3.15"
Live Tool Speed: 12,000 RPM
Weight: 29,000 LBS
Chuck Size: 8.27"
Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
Turret Tools: 16 Station
Max Turning Dia: 21.65"
Max Swing: 37.4"
Y Axis Travel: -2.60/+3.15"
Live Tool Speed: 12,000 RPM
Weight: 29,000 LBS
Options:
Fanuc 31iTB
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Live Tooling
Y Axis
5 Axis

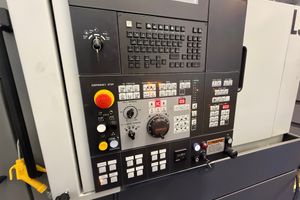

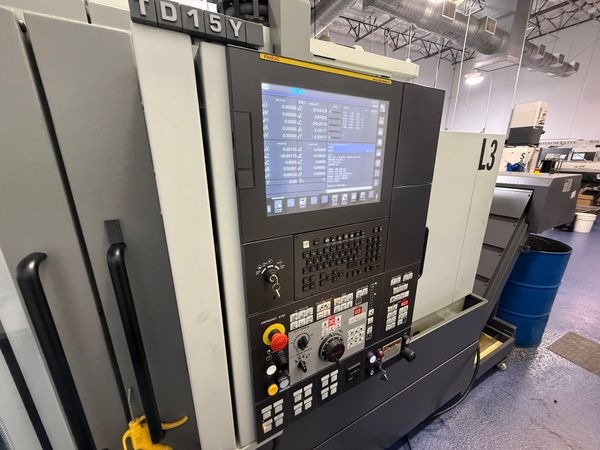

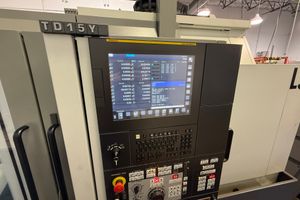

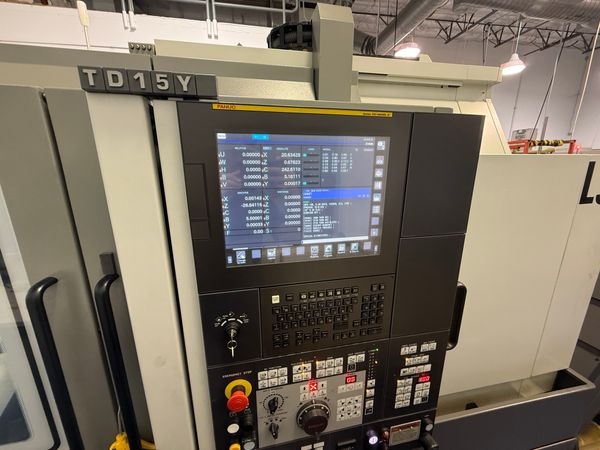

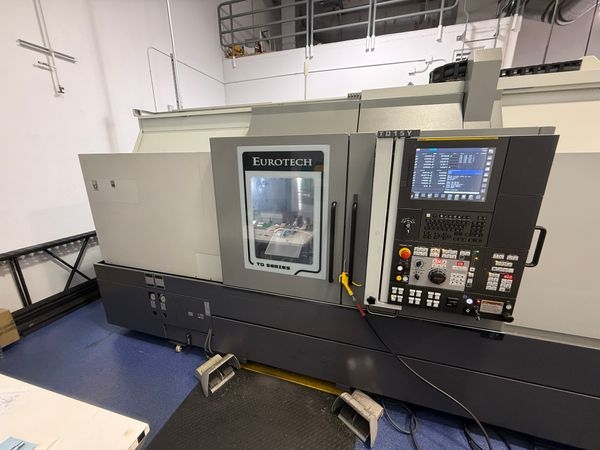

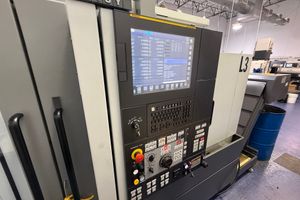

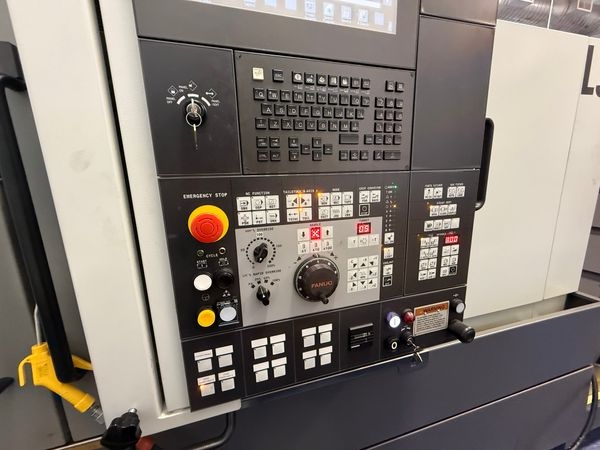

Fanuc 32iTB CNC Control with 15 " touch screen and new iHMI
Machine status indicator light.
Tool life management function
Tool load monitoring function
Removable tool presetter.
G codes type A in Fanuc control
Coolant through the steady
Automatic lubrication system for steady rest

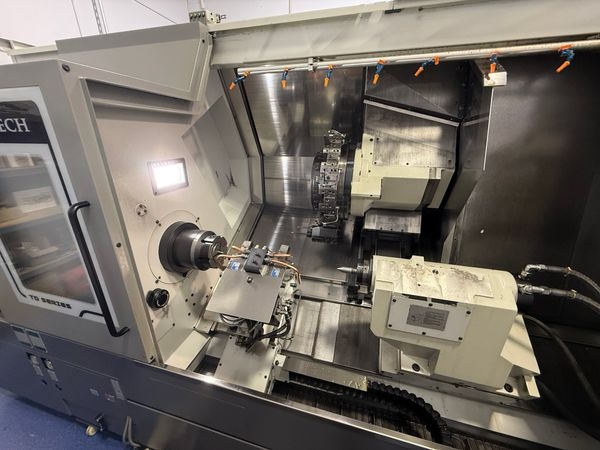

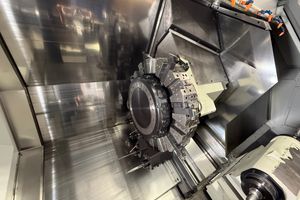

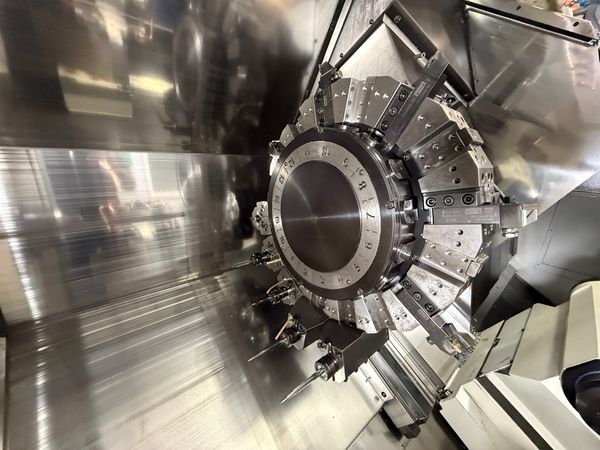

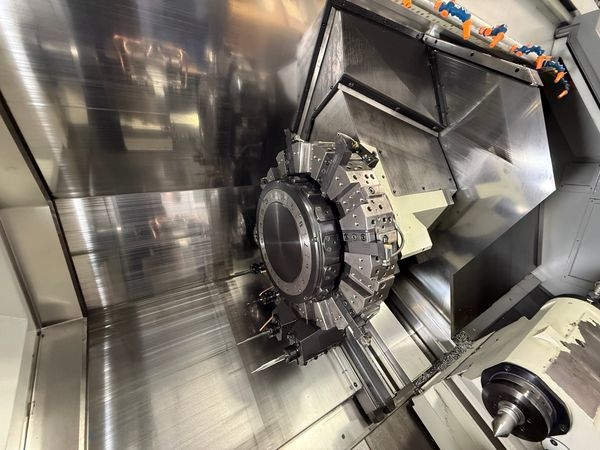

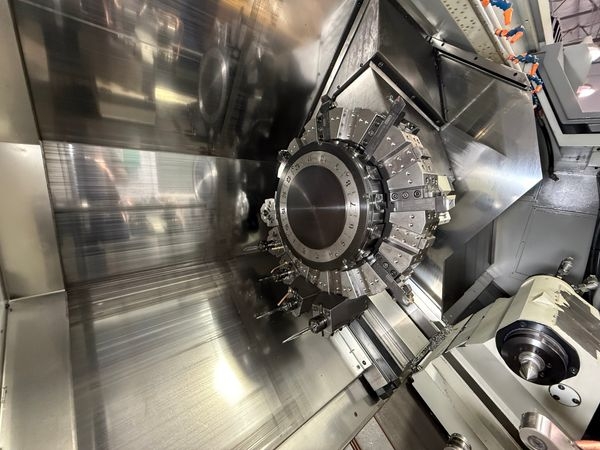

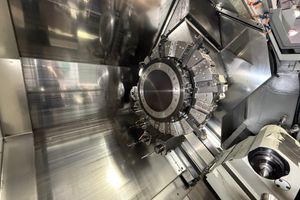

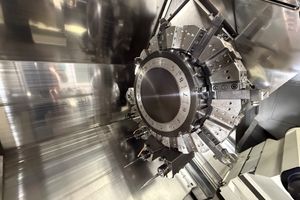

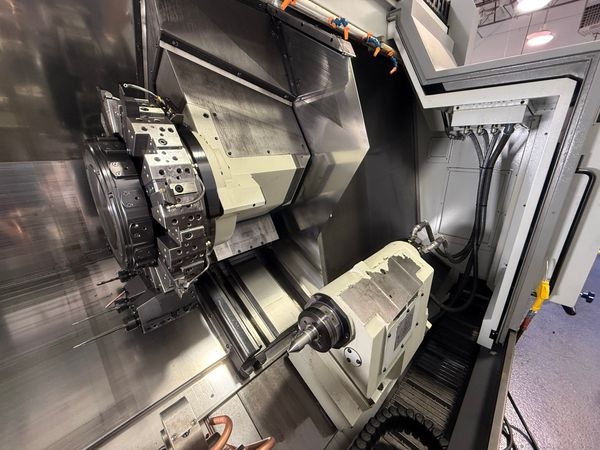

16 position servo turret
Standard hydraulic cylinder in main spindle (TD15 Autoblok VNK 102-46)

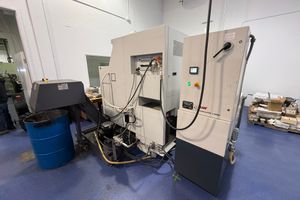

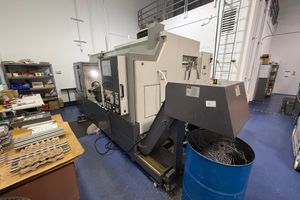

Eurotech STD: Side exit chip conveyor for Z=1350 bed (standard type)
Coolant filter 250µm with scraper type cleaning system

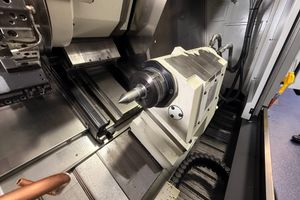

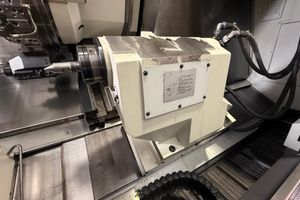

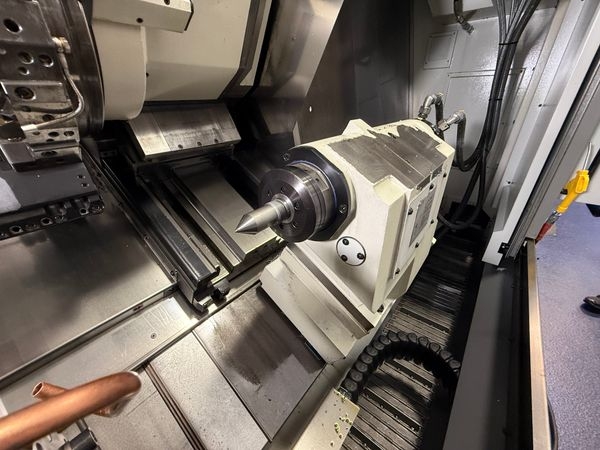

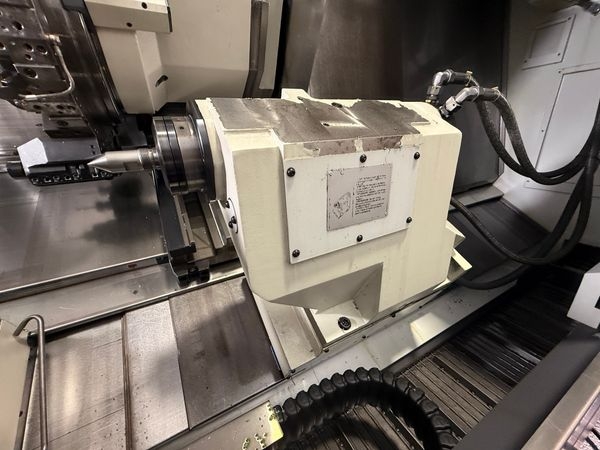

Tailstock with hydraulic clamping (positioned by program)

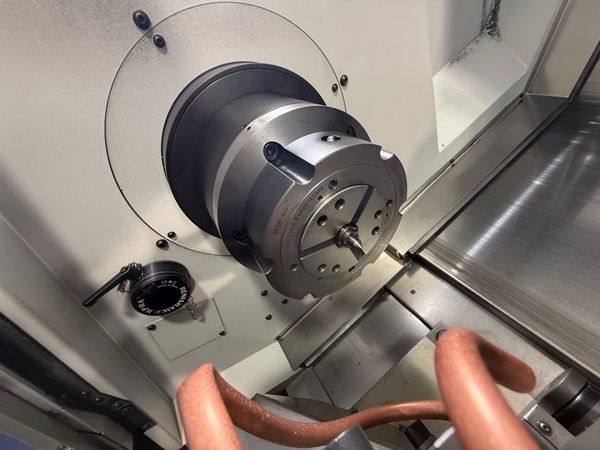

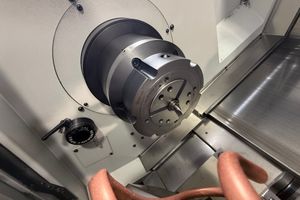

BBM 175 é56 3 jaw chuck on main spindle with one set of soft jaws

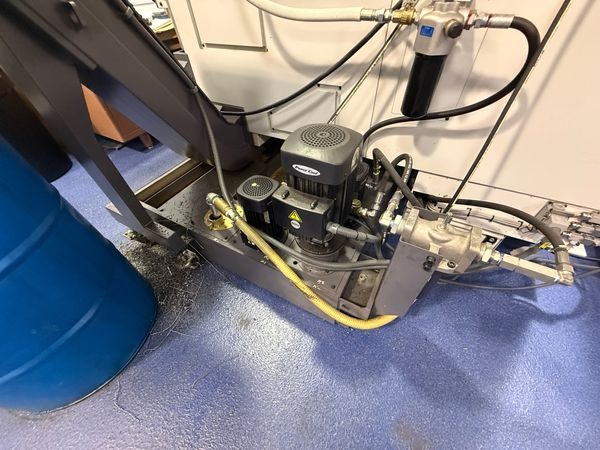

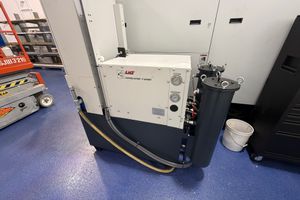

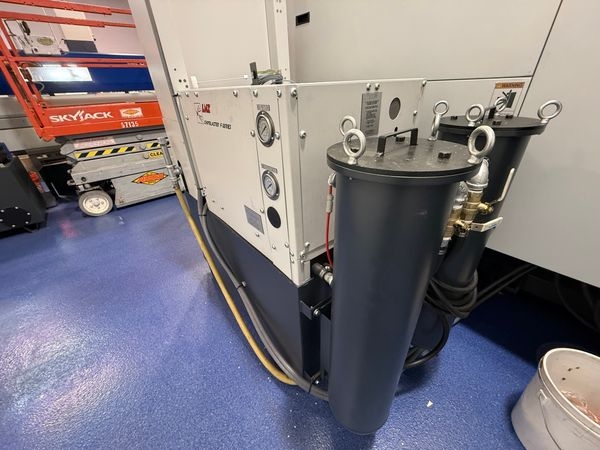

High pressure coolant pumps (6 bar + 15 bar)
Servo base for mounting steadies
Fully programmable B axis

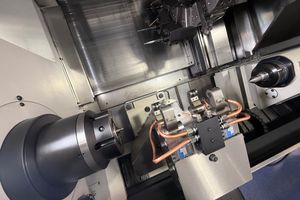

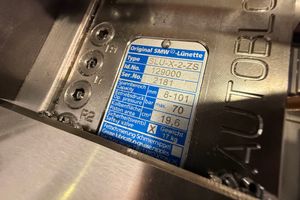

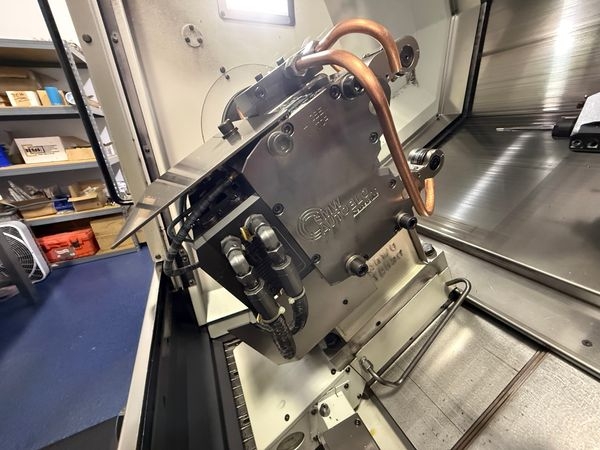

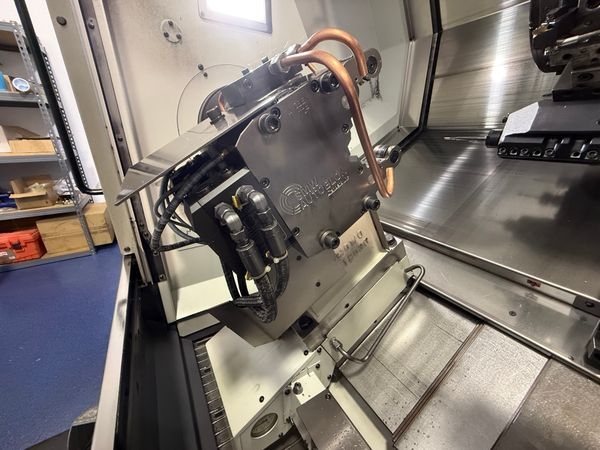

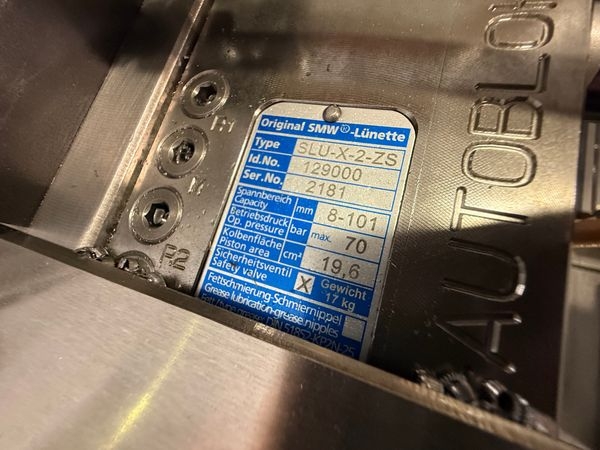

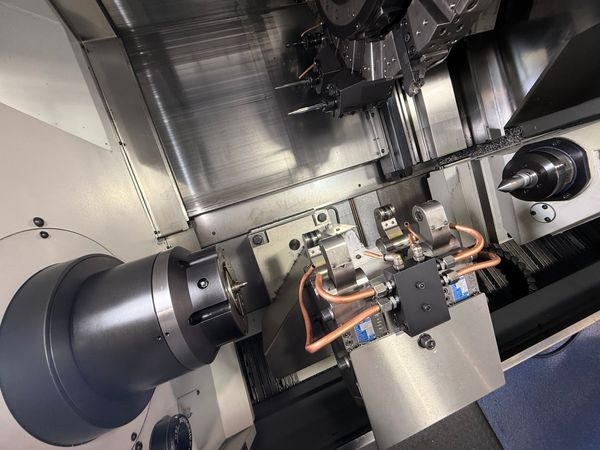

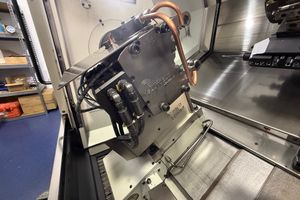

Self-centering hydraulic steady rest SMW-Autoblok model SLUX 2, working diameter from é8mm to é101mm. (Base 1, RH)
Eurotech STD: é 110 x 150 mm MT-4 quill with integrated bearings on tailstock
Tailstock body extended to the left side

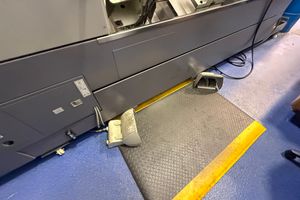

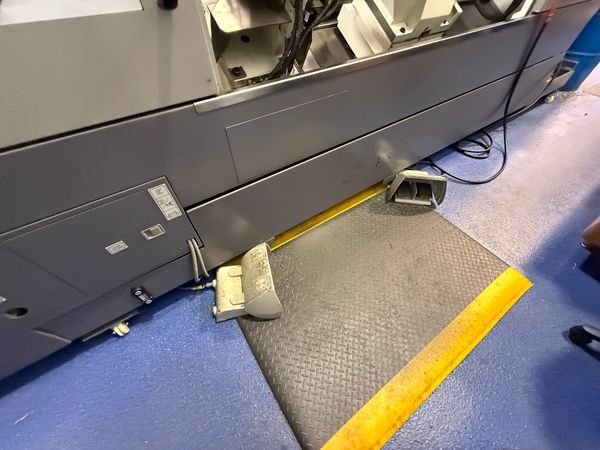

Double foot pedal for tailstock
Eurotech STD: Universal interface for connecting a robot to the machine via Ethernet IP

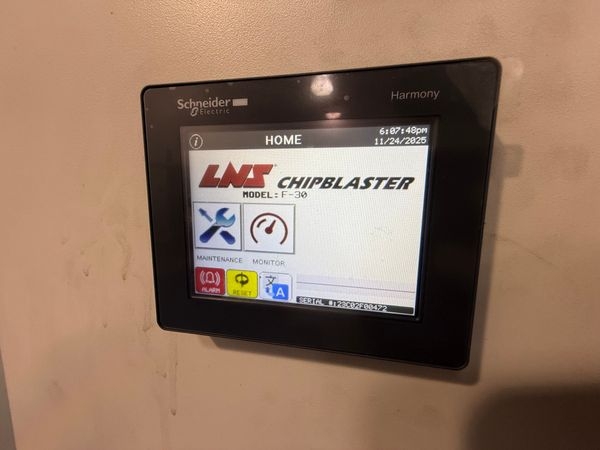

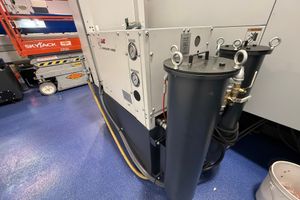

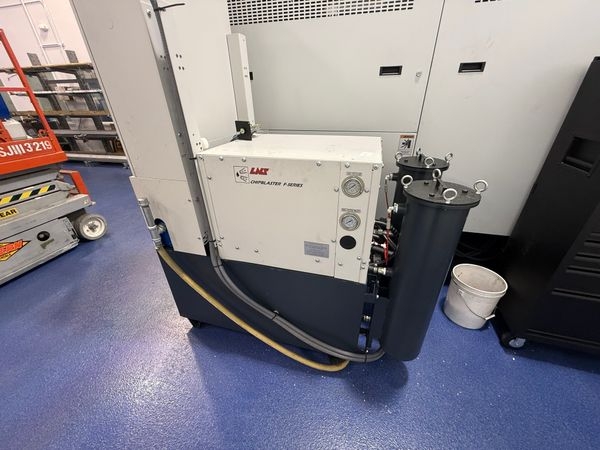

High Pressure 1,000PSI
Wash Down System
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Live Tooling
Y Axis
5 Axis
Fanuc 32iTB CNC Control with 15 " touch screen and new iHMI
Machine status indicator light.
Tool life management function
Tool load monitoring function
Removable tool presetter.
G codes type A in Fanuc control
Coolant through the steady
Automatic lubrication system for steady rest
16 position servo turret
Standard hydraulic cylinder in main spindle (TD15 Autoblok VNK 102-46)
Eurotech STD: Side exit chip conveyor for Z=1350 bed (standard type)
Coolant filter 250µm with scraper type cleaning system
Tailstock with hydraulic clamping (positioned by program)
BBM 175 é56 3 jaw chuck on main spindle with one set of soft jaws
High pressure coolant pumps (6 bar + 15 bar)
Servo base for mounting steadies
Fully programmable B axis
Self-centering hydraulic steady rest SMW-Autoblok model SLUX 2, working diameter from é8mm to é101mm. (Base 1, RH)
Eurotech STD: é 110 x 150 mm MT-4 quill with integrated bearings on tailstock
Tailstock body extended to the left side
Double foot pedal for tailstock
Eurotech STD: Universal interface for connecting a robot to the machine via Ethernet IP
High Pressure 1,000PSI
Wash Down System
Seller:
JayJ981
Location:
NV
