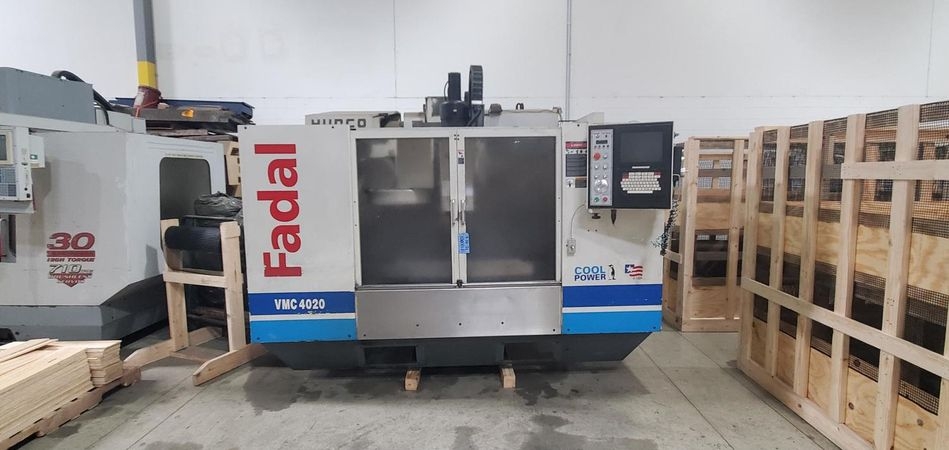

Pre-owned FADAL VMC4020HT 1999 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a 88HS control. This CNC Machine is currently located in Illinois. This FADAL Vertical Ma...Read More
Notify Me:
Specs:
Table Size: 48" x 20"
Max Table Load: 1,000 LBS
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X, Y Z-Axis: 787 IPM
Spindle Speed: 10,000 RPM
Spindle Motor: 22.5 HP High Torque
Spindle Taper: CAT40
Tool Change Positions: 21 ATC
Tool Changer Style: Umbrella
Dimensions: 116" x 87" x 104"
Weight: 13,000 LBS
Max Table Load: 1,000 LBS
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X, Y Z-Axis: 787 IPM
Spindle Speed: 10,000 RPM
Spindle Motor: 22.5 HP High Torque
Spindle Taper: CAT40
Tool Change Positions: 21 ATC
Tool Changer Style: Umbrella
Dimensions: 116" x 87" x 104"
Weight: 13,000 LBS
Options:
88HS
Coolant Thru Spindle
RS-232 Port
4MB Memory
Thru-Spindle Coolant
Remote Jog Handle
Rigid Tapping
High Torque 10,000 RPM Spindle
Coolant Thru Spindle
RS-232 Port
4MB Memory
Thru-Spindle Coolant
Remote Jog Handle
Rigid Tapping
High Torque 10,000 RPM Spindle
