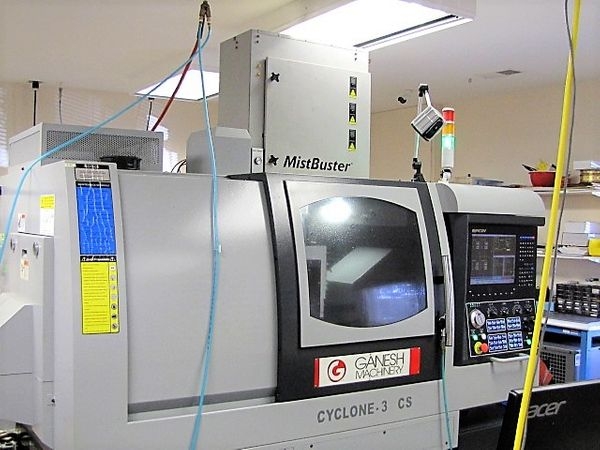

Used GANESH CYCLONE 32CS CNC Lathe
Pre-owned GANESH CYCLONE 32CS 2016 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Virginia. This GANESH CNC Lathe is available for a limited time. Get a quote today on this CYCLONE 32CS before it's gone.
Specs:
Bar Capacity: 1.26"
Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP
X Axis Travel: 728"
Z Axis Travel: 65"
Y Axis Travel: 19.29"
Rapid Rate Z Axis: 1,181 IPM
Rapid Rate X Axis: 1,181 IPM
Number of Tools 27
Live Tool Station 11
OD Turning Tools 6 OD TOOLS (1/2? OR 12 MM)
C Axis Both Spindles 360,000 Positions
Cross Slide Live Tools 4-ER-20 Cross Slide Live Tools, 4,000 rpm, 2 HP
Front Slide Live Tools 3-ER-20 Front Slide Live Tools, 4,000 rpm, 1 HP
Live Tool Collet Size ER-20 Collet, 1/2” (0.5-13mm) Tool Shank Capacity
Max RPM for Live Tools 4,000 RPM
Coolant Pump Dual 50psi 3/4-HP Coolant Pumps
Coolant Tank Capacity 80-gallon Coolant Tank
Way Lube Distributed at 3-6 cc / 15-minute Cycle
Machine Power Requirements 220vac ±5%, 63-amps, 3-phase, 60Hz
Dimensions: 101" x 68" x 80"
Weight: 8,000 LBS
Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP
X Axis Travel: 728"
Z Axis Travel: 65"
Y Axis Travel: 19.29"
Rapid Rate Z Axis: 1,181 IPM
Rapid Rate X Axis: 1,181 IPM
Number of Tools 27
Live Tool Station 11
OD Turning Tools 6 OD TOOLS (1/2? OR 12 MM)
C Axis Both Spindles 360,000 Positions
Cross Slide Live Tools 4-ER-20 Cross Slide Live Tools, 4,000 rpm, 2 HP
Front Slide Live Tools 3-ER-20 Front Slide Live Tools, 4,000 rpm, 1 HP
Live Tool Collet Size ER-20 Collet, 1/2” (0.5-13mm) Tool Shank Capacity
Max RPM for Live Tools 4,000 RPM
Coolant Pump Dual 50psi 3/4-HP Coolant Pumps
Coolant Tank Capacity 80-gallon Coolant Tank
Way Lube Distributed at 3-6 cc / 15-minute Cycle
Machine Power Requirements 220vac ±5%, 63-amps, 3-phase, 60Hz
Dimensions: 101" x 68" x 80"
Weight: 8,000 LBS
Options:
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
Patriot 338 Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
Patriot 338 Bar Feeder
Owner:
Kenneth (Machine Shop in USA)
