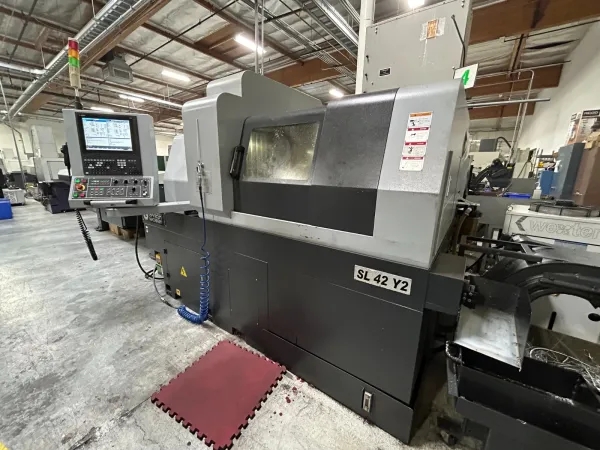

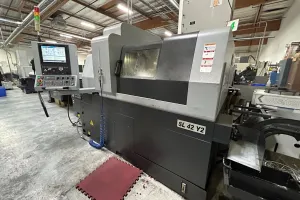

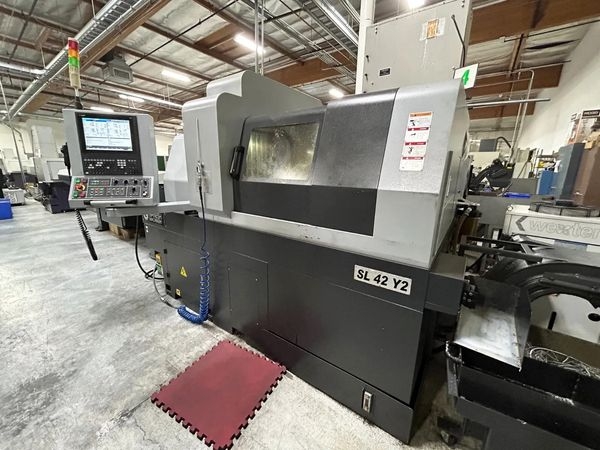

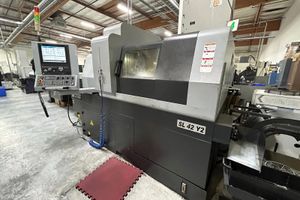

2017 GENTURN SL42Y2

Bar Capacity: 1.625"
Chuck Size: 1.73"
Spindle Speed: 6,000 RPM
Spindle Motor: 7.5 HP
Rapid Rate Z Axis: 944 IPM
Turret Tools: 30 Station
Rapid Rate X Axis: 944 IPM
Max Turning Dia: 12.2"
Max Turning Length: 4.13"
Double Y Axis and double C Axis
Traub-42 / 173E collet style (main & sub-spindle)
3-Bank axial live tool
30-Tools with 8-Driven tools standard
Simultaneous Main & sub-spindle machining
Main Spindle:
Bar capacity: 1-5/8"
Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP (15 min), 7.5 HP (Constant)
Max. turning length: 4.13"
Spindle bore diameter: 1.732"
Collet closer style: Lever Action
Sub-spindle:
Sub-spindle speed: 6,000 RPM
Spindle bearing: Quad duplex pair
Bar capacity: 1-5/8"
Spindle Bore diameter: 1.732"
Max. workpiece length for front ejection: 110mm
Axis:
Main spindle stroke: 12.20"
Rapid Traverse Rate, X/Y/Z-1, X/Y/Z-2: 944 ipm
X1, Z1 Axis motor power: 2 HP
X2, Y1, Y2, Z2 Axis motor power: 1 HP
X1, Y2 linear ways: Ball bearing
X2, Y1, Z1, Z2 linear ways: Roller bearing
Power Requirement: 220V, 60Hz, 3-Phase
Air requirement: 85 psi @ 6cfm
Dimensions: 121" x 67" x 83"

Mitsubishi M800 Control
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
LNS ALPHA 552 Barfeeder
MP Systems 4-Port High Pressure System
Oil Chiller
Mistbuster 850 oil filtration system
