System Components
- Two-station, static cutting table
Long-lasting, plastic cutting surface
Dual high-flow vacuum generators
- High speed cutting beam

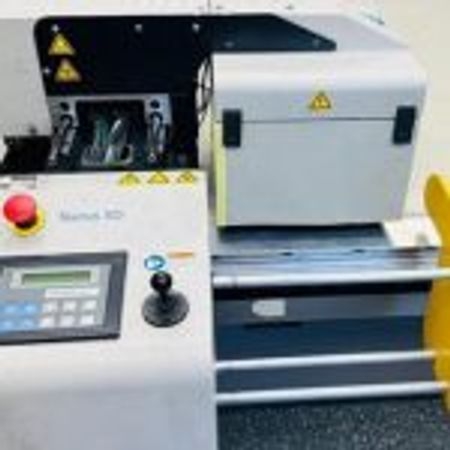

- Cutting head with four tool holders and one ink pen
- Color hide scanning for hide perimeter and flaw capture
- Solid-State Drive PC for cutting control
- Solid-State Drive PC for nesting
- Backup Hard Disk Drives for both computers
Vacuum System
- Dual 7.5KW (10 hp) vacuum blowers installed for maximum material hold-down
- Independent gate valves for each vacuum mounted onto the cutting frame
- Efficient, integrated electric motors with low current start and a powerful centrifugal vacuum generator
- Each cutting station contains its own blower for consistent, powerful flow
Maximum Cutting Speed
- 1.27 m/sec (50 in/sec)
Maximum Cutting Acceleration
- 10.16 m/sec2 (400 in/sec2)
Key Features
- PC-based software in Windows ® environment
- Ability to import data from many data types including NC, DXF, AAMA-DXF, IGES
- "Zero-Buffer" cutting
- Capability to cut leather, cloth, vinyl, foam and carpet
- Color hide scanning with resolution of 0.5 mm
- Database to record production statistics for every hide cut
- Available with automatic and manual nesting solutions
- Up to four flaw zones to improve quality and nesting efficiencies
- Up to three character zones to provide positional part cutting
- Durable and easily installed cutting surface
- AC brushless servos
System Dimensions and Requirements
Dimensions
- Machine: 2.74 x 7.31 m (9 x 24 ft)
- Footprint: 3.6 x 7.31 m (11.8 x 24 ft)
- Cutting area per station: 2.74 x 3.20 m (9 x 10.5 ft)
- Table height: 0.82 to 0.85 m (32.5 to 33.5 in)
PC and Operating System
- Intel or AMD processors
- Windows XP Professional
Power
- 60 Hz vacuum blowers (2)
208-230 VAC at 25.6-23.4 amps (3 phase per blower)
460 VAC at 11.7 amps (3 phase per blower)
- 50 Hz vacuum blowers (2)
190-220 VAC at 29-26 amps (3 phase per blower)
380-415 VAC at 14.5-13.3 amps (3 phase per blower)
- Drive system
220 VAC at 15 amps (1 phase)
Compressed Air
- 5.5 - 8.3 bar (80 -120 psi) @ 14.15lpm (0.5 scfm)
Included Optional Components
- Laser pointer: Facilitates pattern scanning
- 2 Variable Frequency Drives
- A Water Separator
- 2 Heavy Duty Protective Cable Ramps
