Seller Needs:
$53,000|
12179
|
26

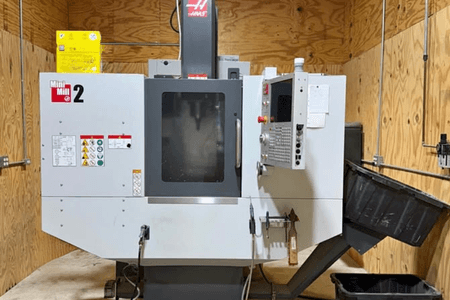

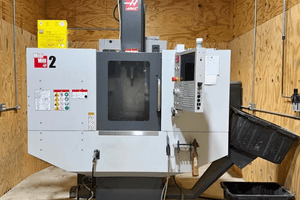

Introducing a sturdy 2017 HAAS DM2 Vertical Machining Center that is currently up for sale, aiming to attract the eyes and interests of machining enthusiasts, professionals, and companies in heavy industrial sectors or smalle...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 28"
Y Axis Travel: 16"
Z Axis Travel: 15.5"
Rapid Rate X Axis: 2,400 IPM
Rapid Rate Y Axis: 2,400 IPM
Rapid Rate Z Axis: 2,400 IPM
Max Table Load: 250 LBS
Spindle Motor: 15 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 18 ATC
Spindle Nose to Table: 6"-21.5"
Max Tapping Speed: 5000 RPM
Table Size: 34" x 15"
Dimensions: 91" x 100" x 98"
Weight: 5,350 LBS
Y Axis Travel: 16"
Z Axis Travel: 15.5"
Rapid Rate X Axis: 2,400 IPM
Rapid Rate Y Axis: 2,400 IPM
Rapid Rate Z Axis: 2,400 IPM
Max Table Load: 250 LBS
Spindle Motor: 15 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 18 ATC
Spindle Nose to Table: 6"-21.5"
Max Tapping Speed: 5000 RPM
Table Size: 34" x 15"
Dimensions: 91" x 100" x 98"
Weight: 5,350 LBS
Options:
Probe
Coolant Thru Spindle
Programmable Coolant
15,000 RPM Spindle Speed
Rigid Tapping
High Speed Machining
1 GB Memory
$99,270 Brand New
Coolant Thru Spindle
Programmable Coolant
15,000 RPM Spindle Speed
Rigid Tapping
High Speed Machining
1 GB Memory
$99,270 Brand New
Seller:
DougM656
Location:
WI
