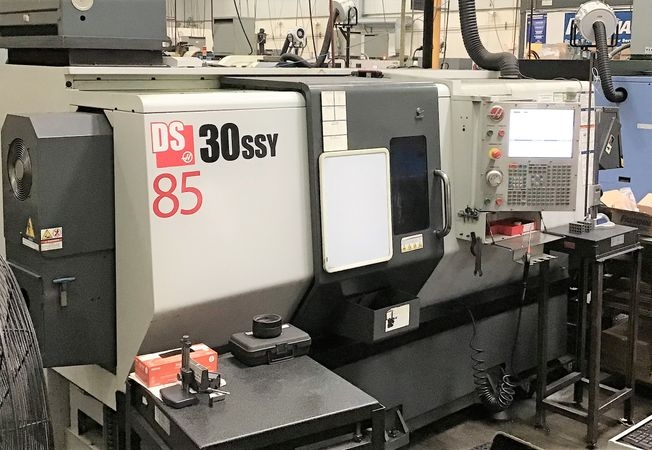

Used HAAS DS30SSY CNC Lathe

Pre-owned HAAS DS30SSY 2011 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Minnesota. This HAAS CNC Lathe is available for a limited time.Get a quote today on this DS30SSY before it's gone.

Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 4,500 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.5"
Z Axis Travel: 23"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 24 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 18"
Max Turning Length: 23"
Max Swing: 31.8"
Swing over the saddle: 20.80?
Y axis travel: 4?
B axis travel: 32.68? ( Sub Spindle )
C axis: 360° (0.001°) Both Spindle
Live tooling: 6000 RPM
Sub spindle speed: 4800 RPM
Turret index time: 0.1 Second
Dimensions: 171" x 90" x 92"
Weight: 16,000 LBS
Options:
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
Owner:
Corey (Machine Shop in USA)
