Machine Overview

Specs:
Bar Capacity: 3"
Chuck Size: 8"
Spindle Speed: 6,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.5"
Z Axis Travel: 23"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 24 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 18"
Max Turning Length: 23"
Max Swing: 31.8"
Swing over the saddle: 20.80"
Y axis travel: 4"
B axis travel: 32.68" (Sub Spindle)
Live tooling: 6,000 RPM
Sub spindle speed: 4,800 RPM
Turret index time: 0.1 Second
Voltage: 220 V
Dimensions: 171" x 90" x 92"
Weight: 16,000 LBS

EQUIPPED WITH
main and Sub Spindle with 6" Chucks, 2 Live tool holders, Several Block and VDI tool holders,
24 station Hybrid turret, A2-6 main and A2-5 Sub spindle noses, 30 HP main and 20 HP sub
spindle motors, 6,000 RPM Live tools, 4,800 RPM Main and Sub spindles, Rigid tapping,
Ethernet, Extended memory, Macros, High Voltage Transformer, Auto tool probe and Part
probes, hard drive, 1,000 PSI coolant, EPFD= Early power failure detection
Parts Catcher, Bar puller
Options:
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Auto Tool Probe and Part Probes
Rigid Tapping
Extended Memory
Macros
High Voltage Transformer
Hard Drive
1,000 PSI Coolant
EPFD= Early Power Failure Detection
Description:

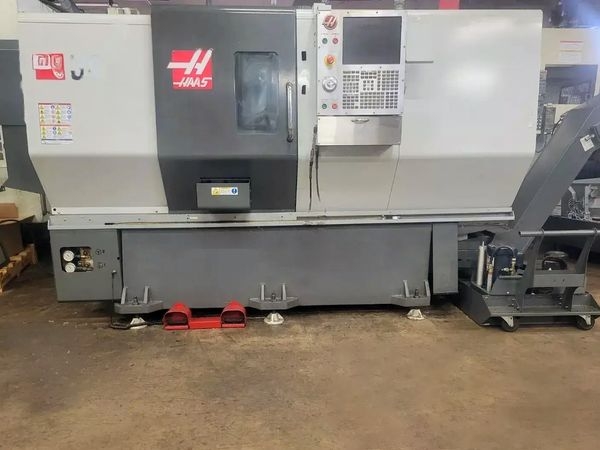

This 2015 HAAS DS30SSY is a great find. This machine tool is known for its high output and cool running. Since 2015, it has been in use but is in good working order with no damage.

Its lightweight design allows an operator to move and put it wherever they want. It has a footprint that does not overstep, and it fits comfortably in any shop floor space. Its compact design yet high output make it a standout tool. The HAAS DS30SSY was built with a single goal in mind – to increase productivity without taking up too much space.

This unit is not just about great design. It is also about high output. Count on it to keep going even in long workdays. The motor is not only designed to last but also to make sure that the job is carried out in a snap. Despite its high speed, the machine operates with minimum noise and heat due to its smart design. The motor design also reduces the cost of operation and time.

The HAAS DS30SSY comes with a transparent shield to protect the operator from debris, yet allows clear visibility of the operation. Easy to use controls are also readily available for easy operation, and the settings can be easily adjusted as needed.

The HAAS DS30SSY is a smart tool. It does not demand any intricate or complex operation, making it a user-friendly piece of machinery. It has a well-placed display that provides easy-to-read data, such as the speed, temperature, and other valuable information. Its user-friendly controls create a great degree of ease for operators to quickly learn how to use this equipment.

You will also find a smart storage system for tools in this machine. This gives the operator fast access to any tool they may require and keeps the tools safe when not in use.

This 2015 HAAS DS30SSY is not just a machine, but a combo of high function and smart design that can make your job easier and faster. If that’s not great value, then we don’t know what is. Check out this unit, and we promise you, you won’t regret it.
