Machine Overview

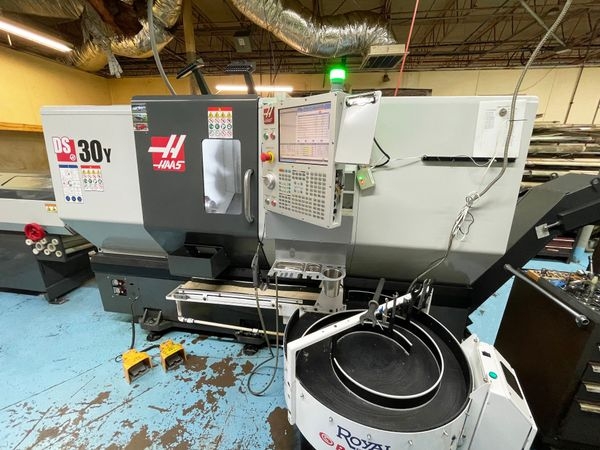

This 2021 HAAS DS30Y CNC Lathe comes packed with numerous options and upgrades that elevate its capabilities. It's equipped with a chip conveyor, making chip collation straightforward and reducing manual maintenance effort. A tool presetter is included to enhance tooling accuracy, saving setup time.
The lathe includes a bar feeder for continuous operation, increasing overall productivity. The parts catcher allows automatic handling of finished parts, which simplifies the production process. Additionally, the presence of live tooling and a sub-spindle broadens the range of machining capabilities, allowing for complex operations.
The machine features a robust Y-axis and is controlled by the Haas Next Gen CNC Control allowing for precise maneuvering and programming flexibility. A Royal Rota-Rack is included to streamline parts handling. With a 6,000 RPM speed upgrade for live tooling, the lathe handles intensive work with ease.
To further its efficiency, a 24-station BMT65 turret and high-pressure coolant system with 1000 PSI have been integrated. High-intensity lighting (24V) improves visibility during operations, and the chuck air blast ensures cleanliness. It also comes with a low voltage transformer for electrical stability.
The lathe is equipped with a chip tray filter kit and a coolant tank oil skimmer, making maintenance simple. Its visual part programming system simplifies the creation of complex parts. The machine includes 1 GB of memory and user-definable macros for customized operations.
A 55-gallon coolant tank and a cabinet cooler are in place for effective thermal management. Both the 10" hydraulic chuck (main spindle) and 8" hydraulic chuck (sub spindle) cater to diverse machining needs. An early power failure detection module safeguards against unexpected shutdowns.
Connectivity options include an Ethernet interface, HaasConnect for remote monitoring, HaasDrop, WiFi, and Media Display M-Code; M130, ensuring integration with modern digital tools. Rigid tapping and spindle orientation capabilities further expand machining possibilities.
