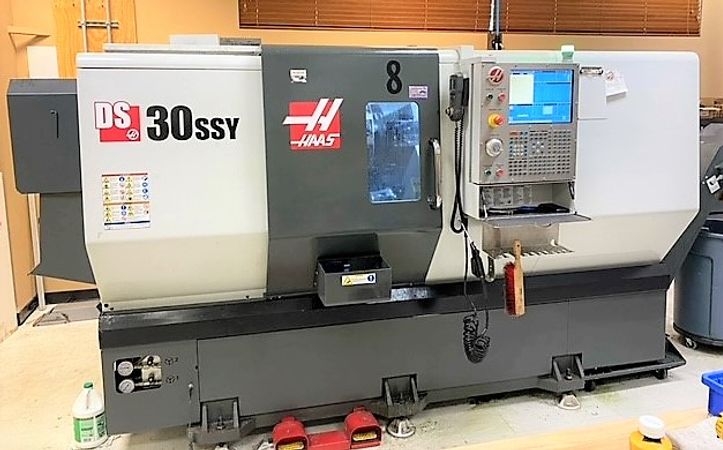

Used HAAS DS30SSY CNC Lathe
Pre-owned HAAS DS30SSY 2014 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Florida. This HAAS CNC Lathe is available for a limited time. Get a quote today on this DS30SSY before it's gone.
Specs:
Bar Capacity: 3"
Chuck Size: 10"/ 8" **Collet Chucks Not Included**
Spindle Speed: 4,500 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.5"
Z Axis Travel: 23"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 24 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 18"
Max Turning Length: 23"
Max Swing: 318"
Swing over the saddle: 20.80"
Y axis travel: 4"
B axis travel: 32.68" (Sub Spindle)
C axis: 360° (0.001°) Both Spindle
Live tooling: 6,000 RPM
Sub spindle speed: 4,800 RPM
Turret index time: 0.1 Second
Dimensions: 171" x 90" x 92"
Weight: 16,000 LBS
Chuck Size: 10"/ 8" **Collet Chucks Not Included**
Spindle Speed: 4,500 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.5"
Z Axis Travel: 23"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 24 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 18"
Max Turning Length: 23"
Max Swing: 318"
Swing over the saddle: 20.80"
Y axis travel: 4"
B axis travel: 32.68" (Sub Spindle)
C axis: 360° (0.001°) Both Spindle
Live tooling: 6,000 RPM
Sub spindle speed: 4,800 RPM
Turret index time: 0.1 Second
Dimensions: 171" x 90" x 92"
Weight: 16,000 LBS
Options:
HAAS CNC Control
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Owner:
Dave (Located in USA)
