Home / CNC Lathe / HAAS / DS30SSY / 9438
Posted By AndrA734
us-flag
Located In Minnesota
SHIPPING COST :
Hello!

Machine Overview

Specs:
Bar Capacity: 3"
Chuck Size: 8"
Spindle Speed: 4,500 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.5"
Z Axis Travel: 23"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 24 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 18"
Max Turning Length: 23"
Max Swing: 31.8"
Swing over the saddle: 20.80"
Y axis travel: 4"
B axis travel: 32.68" (Sub Spindle)
C axis: 360° (0.001°) Both Spindle
Live tooling: 6,000 RPM
Sub spindle speed: 4,800 RPM
Turret index time: 0.1 Second
Dimensions: 171" x 90" x 92"
Weight: 16,000 LBS
Options:
HAAS CNC Control
Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
Y Axis
5 Axis
High Intensity Lighting
Enclosure Exhaust System
Description:

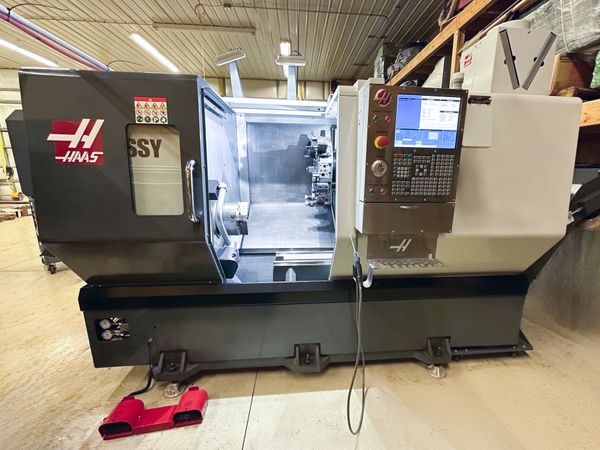

The 2016 HAAS DS30SSY CNC Lathe we have on offer is currently stored in Minnesota and is immediately available for purchase. The main reason for selling is quite simple – the machine is not being used. Purchased new in 2016 and despite having been used for a few years, it remains in exceptional shape, indicating preservative handling and periodic maintenance calculations. For those wary about its age, please refer to the attached photo which clearly demonstrates its very low operating hours.



This HAAS CNC Lathe is not just a simple lathe but a model with several upgrades that increase its functionality and value. Its HAAS CNC control system provides the user with straightforward, intuitive operation, enhancing work productivity. The machine is equipped with a Chip Conveyor, which is designed to transport waste chips out of the primary cutting zone. This system promotes a clean and unobstructed work environment, fostering the longevity of all internal components.



Additionally, there is a Tool Presetter on this model, which significantly reduces tool setup times and improves accuracy. This makes repetitive jobs a breeze and ensures each piece is precision-crafted to your exact specifications. This lathe also includes Live Tooling which allows for milling, drilling, and tapping operations to be performed on the piece while it is still in the chuck. This removes the necessity for secondary operations and reduces overall production times.



Further augmenting the productiveness of this machine is a Sub Spindle. This means there are two spindles working simultaneously, enabling complex work to be performed in one operation, and eliminates the need to stop and re-position the workpiece. This machine is also equipped with a Y Axis and 5 Axis capabilities, providing more articulation and freedom in creating complex parts with high precision.



With its myriad of features and upgrades, this 2016 HAAS DS30SSY CNC Lathe is a smart investment for anyone looking to augment their machining capabilities. Given its impeccable condition and minimal usage, it represents a savvy purchase for anyone in the machining industry. The features on this model make it incredibly versatile and capable of handling a broad range of tasks. Give your production line a boost with this top-tier lathe.
