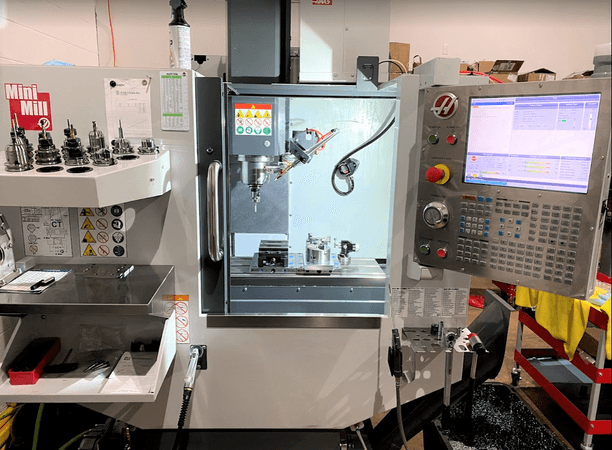

Pre-owned HAAS MINI MILL 2018 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Haas CNC control. This CNC Machine is currently located in Washington. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this MINI MILL before it's gone.
Notify Me:
Specs:
X Axis Travel: 16"
Y Axis Travel: 12"
Z Axis Travel: 10"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size: 28.75" x 12"
Max Table Load: 500 LBS
Spindle Motor: 7.50 HP
Spindle Speed: 6,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Bearing Lubrication: Grease Packed
Cooling: Air Cooled
Max Cutting: 500 ipm
Axis Motors: 2,000 IBF Max Thrust X,Y,Z
Max Tool Dia: 3.5"
Max Tool Weight: 12 lbs
Chip to Chip: 5 Sec
Coolant Capacity: 40 Gal Standard
Air Required 100 PSI
Full Load AMPS 13/25
Input Voltage 220 3 Phase
Dimensions: 90" x 64" x 100"
Weight: 4,000 LBS
Y Axis Travel: 12"
Z Axis Travel: 10"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size: 28.75" x 12"
Max Table Load: 500 LBS
Spindle Motor: 7.50 HP
Spindle Speed: 6,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Bearing Lubrication: Grease Packed
Cooling: Air Cooled
Max Cutting: 500 ipm
Axis Motors: 2,000 IBF Max Thrust X,Y,Z
Max Tool Dia: 3.5"
Max Tool Weight: 12 lbs
Chip to Chip: 5 Sec
Coolant Capacity: 40 Gal Standard
Air Required 100 PSI
Full Load AMPS 13/25
Input Voltage 220 3 Phase
Dimensions: 90" x 64" x 100"
Weight: 4,000 LBS
Options:
Haas CNC
Probe
Chip Auger
High Flow Coolant Pump
Rigid Tapping
Air Gun
Exhaust Enclosure
High Speed Machining
Probe
Chip Auger
High Flow Coolant Pump
Rigid Tapping
Air Gun
Exhaust Enclosure
High Speed Machining
