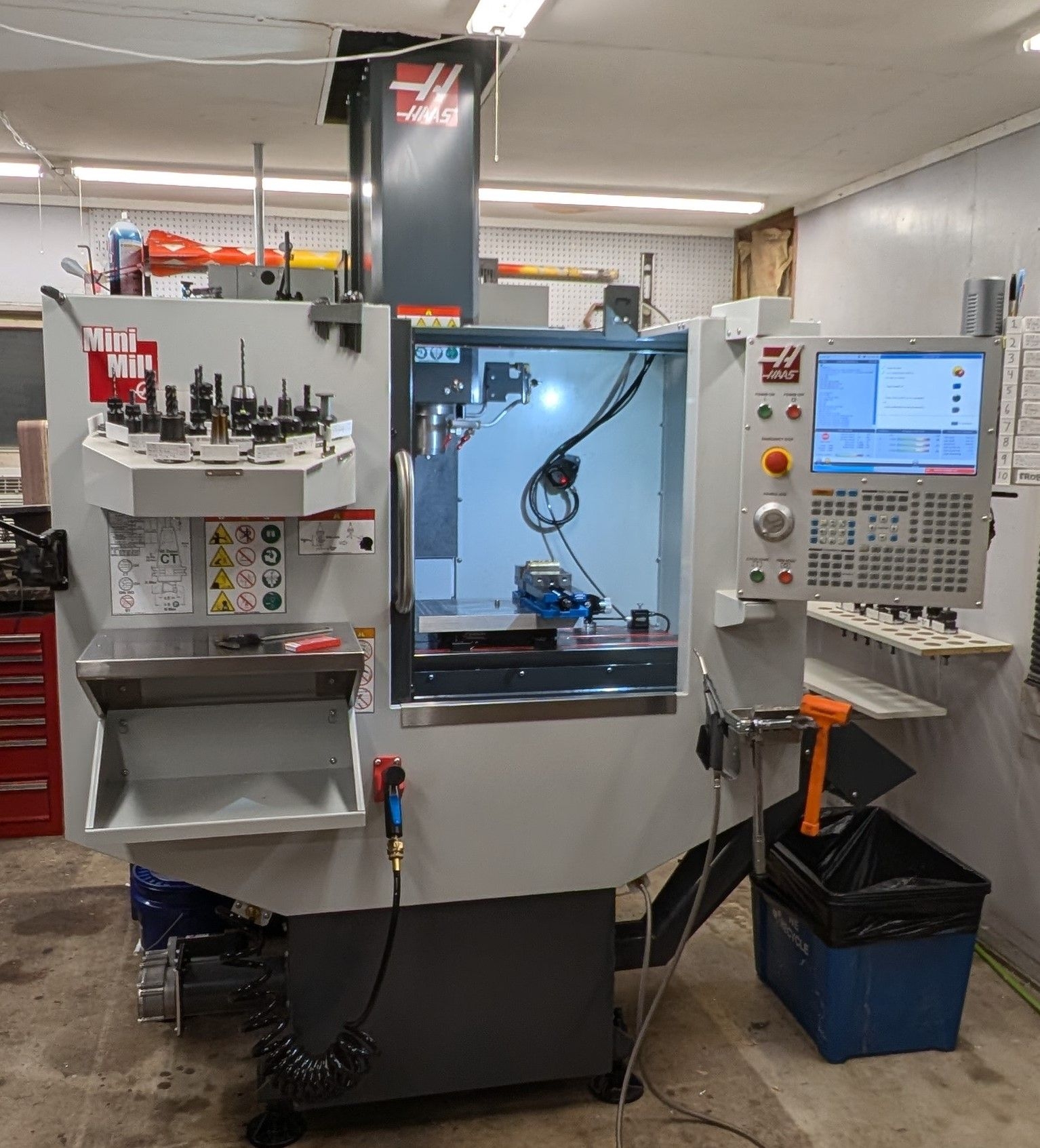

2021 HAAS MINI MILL

ID:11672
Brand:HAAS
Model: MINI MILL
Year:2021
Category:Vertical Machining Center
Location:USA

Located In USA

0-500 Hours

Hello!

Machine Overview

Specs:

Prototype/hobby machine, very gently used for aluminum and brass.

Intended to start my own machining business but found other opportunities.

2000 "on" hours, ~3k tool changes, 100hrs cycle time, 60 spindle hours.

X Axis Travel: 16"
Y Axis Travel: 12"
Z Axis Travel: 10"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size:
Max Table Load: 500 LBS
Spindle Motor: 7.50 HP
Spindle Speed: 6,000 RPM
Spindle Taper: 40
Tool Changer: 10 ATC
Bearing Lubrication: Grease Packed
Cooling: Air Cooled
Max Cutting: 500 ipm
Axis Motors: 2,000 IBF Max Thrust X,Y,Z
Max Tool Dia: 3.5"
Max Tool Weight: 12 lbs
Chip to Chip: 5 Sec
Coolant Capacity: 40 Gal Standard
Air Required 100 PSI
Full Load AMPS 13/25
Input Voltage 220 single phase
Dimensions:
Weight: 4,000 LBS

Includes Pierson Pro pallet system, Saunders fixture plate pallet for Pierson, Saunders modular vise system, and Kurt 4" Vise.

Have 40+ cat 40 toolholders, tons of extra pull studs, 5C collet set and collet Holders, also included.

Options:

Haas Next Gen w/ Touchscreen 13:55:12
Probe
Chip Conveyor
High Speed Machining
High Flow Coolant Pump
High Speed Machining
Rigid Tapping
Convenience Package
Coolant Skimmer

Description:

Pre-owned HAAS MINI MILL 2021 Vertical Machining Center. This Vertical Machining Center has 0-500 cutting time and is equipped with a Haas Next Gen w/ Touchscreen 13:55:12 control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this MINI MILL before it's gone.
