Machine Overview

Specs:
Bar Capacity: 4"
Chuck Size: 12"
Spindle Speed: 3,000 RPM
Spindle Motor: 40 HP
Spindle Nose: A2-8
Sub Spindle Bar Capacity: 4"
Sub Spindle Chuck Size: 12"
Sub Spindle Motor: 20HP
Sub Spindle Nose: A2-8
Milling Spindle Speed: 8,000RPM
Sub Spindle Speed: 4,000RPM
B Axis Travel: 180°
X Axis Travel: 25"
Z Axis Travel: 125"
Rapid Rate Z Axis: 1,181 IPM

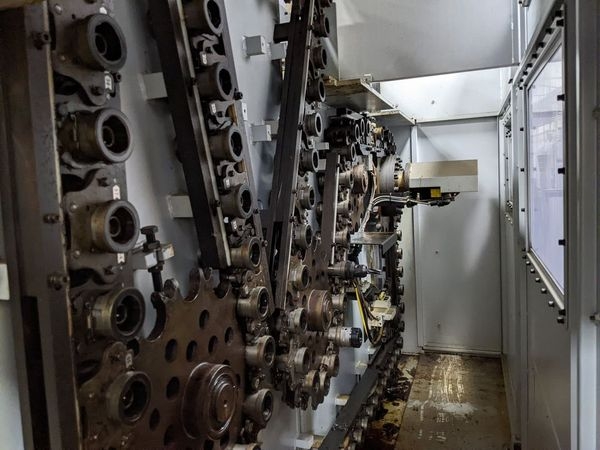

Turret Tools: 120 Station
Rapid Rate X Axis: 944 IPM
Max Turning Dia: 22"
Max Turning Length: 125"
Max Swing: 32"
Dimensions: 348" x 133" x 129"
Weight: 72,000 LBS
Options:

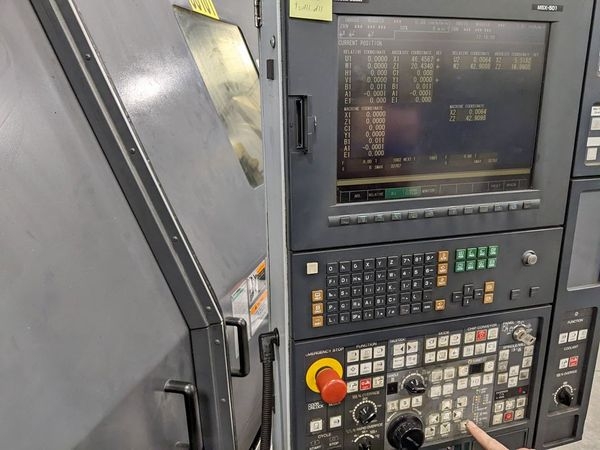

MSX-501 CNC Control

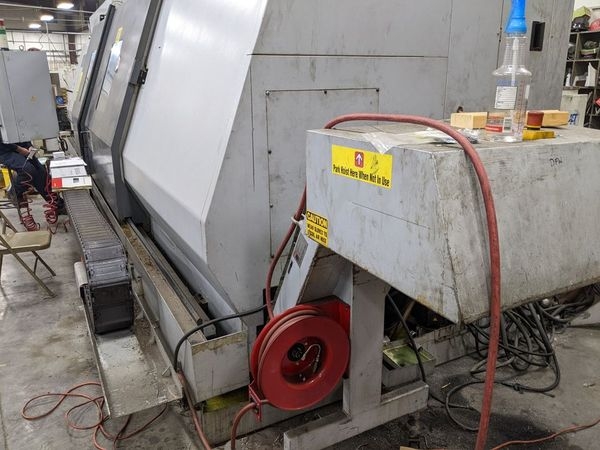

Chip Conveyor
Live Tooling
Sub Spindle
Y Axis
5 Axis
12" Programmable Turn Through Steady Rest

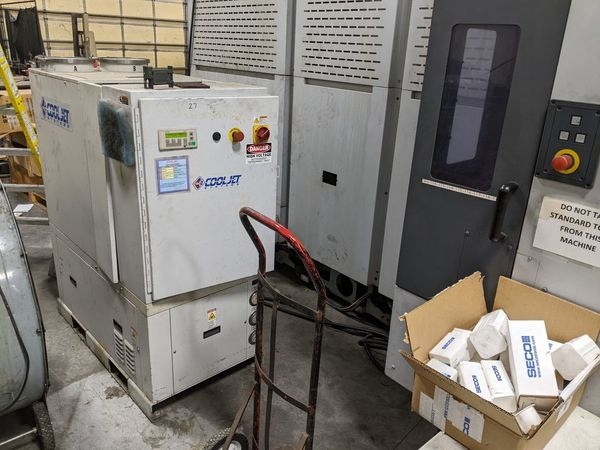

Cool Jet High Pressure Coolant System (1000 PSI)
Auto Door
Thru-Spindle Coolant
Description:

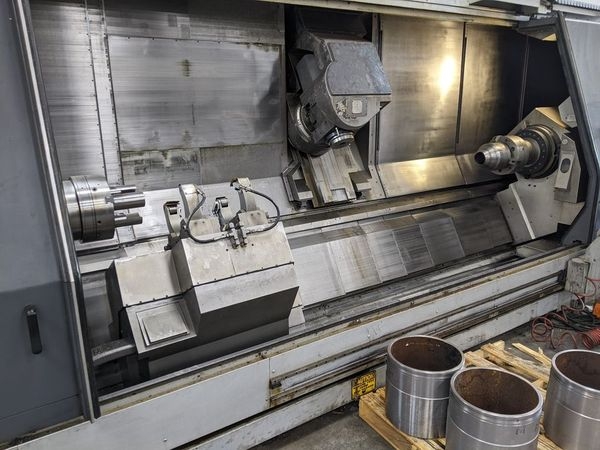

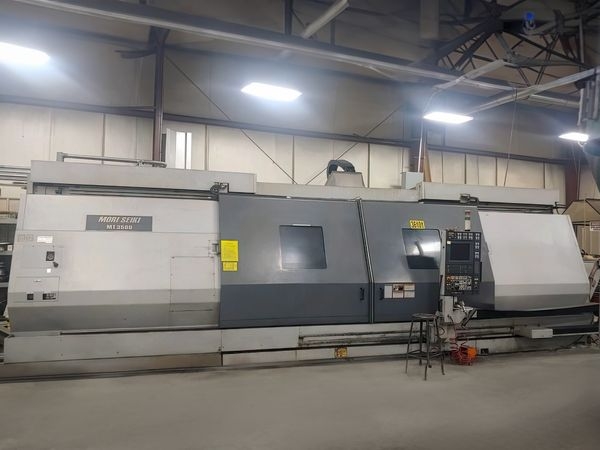

This 2005 MORI SEIKI MT3500S CNC Lathe is a versatile machine ready to handle a range of tasks in your shop. Equipped with the MSX-501 CNC Control, it simplifies operations and enhances productivity.

This lathe comes with various options and upgrades. It includes a Chip Conveyor to manage waste and a Live Tooling feature for added functionality. The Sub Spindle allows for more complex machining tasks, and the Y Axis adds flexibility. This machine also offers 5 Axis capabilities, making it a great choice for detailed projects.

The 12" Programmable Turn Through Steady Rest ensures that your workpieces are secure during operations. It comes with a Cool Jet High Pressure Coolant System with 1000 PSI power, improving the cooling process during tasks. The Auto Door feature allows for ease of use and better safety measures.

Additionally, the lathe is equipped with a Thru-Spindle Coolant system. This feature is designed to enhance the machining process by directing coolant through the spindle directly to the cutting area. This allows for better tool life and adds to the machine's overall usefulness.

This machine is ready to assist you in fabricating parts with precision, supporting your efforts in achieving quality outcomes. It offers several advanced features designed to meet the needs of modern machining environments. Whether you are cutting, drilling, or shaping, this CNC lathe has the capabilities to help you accomplish your goals.
