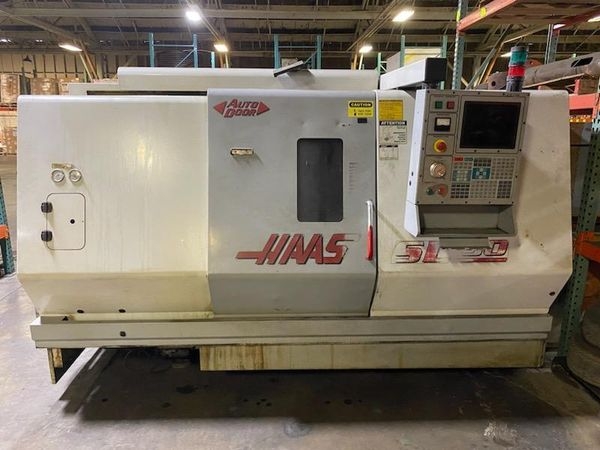

Pre-owned HAAS SL30T 2000 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limited time. ...Read More
Notify Me:
Specs:
Max Swing: 20.5"
Max Turning Diameter: 15"
Max Turning Length: 32.5"
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
Bar Capacity: 3"
Turret Style: VDI
Turret Stations: 12 Station
Chuck Size Rating: 10"
Rapid Rate Z Axis: 945 IPM
Rapid Rate X Axis: 945 IPM
Equipped With:
Haas CNC Control
Programmable Tailstock
Chip Auger
Auto Door
10" 3-Jaw Kitagawa Chuck
Coolant Tank, Pump & Assembly
Dimensions: 148" L x 68.5" W x 81" H
Weight: 14,300 LBS
Max Turning Diameter: 15"
Max Turning Length: 32.5"
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
Bar Capacity: 3"
Turret Style: VDI
Turret Stations: 12 Station
Chuck Size Rating: 10"
Rapid Rate Z Axis: 945 IPM
Rapid Rate X Axis: 945 IPM
Equipped With:
Haas CNC Control
Programmable Tailstock
Chip Auger
Auto Door
10" 3-Jaw Kitagawa Chuck
Coolant Tank, Pump & Assembly
Dimensions: 148" L x 68.5" W x 81" H
Weight: 14,300 LBS
Options:
HAAS CNC Control
Tailstock
Auto Door
Chip Auger
10" Kitagawa 3-Jaw Chuck
Programmable Tailstock
Coolant Tank & Pump
Tailstock
Auto Door
Chip Auger
10" Kitagawa 3-Jaw Chuck
Programmable Tailstock
Coolant Tank & Pump
