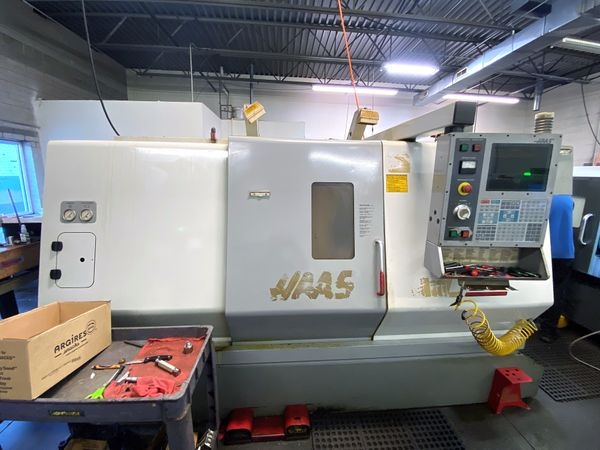

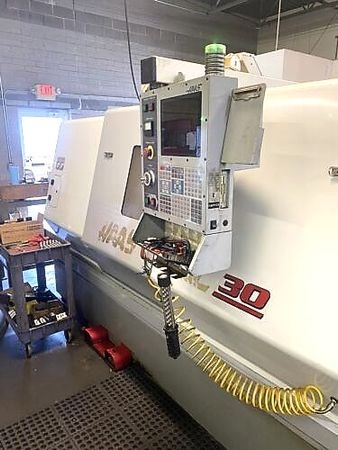

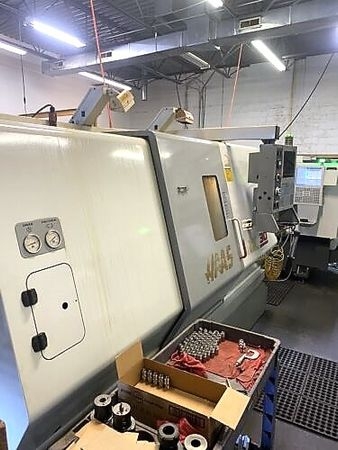

Reserve Met: 2001 HAAS SL30T #8298

Bar Capacity: 3"

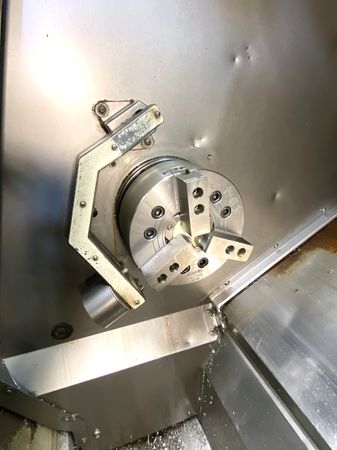

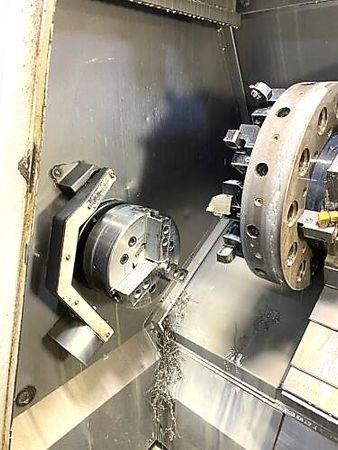

Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Rapid Rate Z Axis: 945 IPM

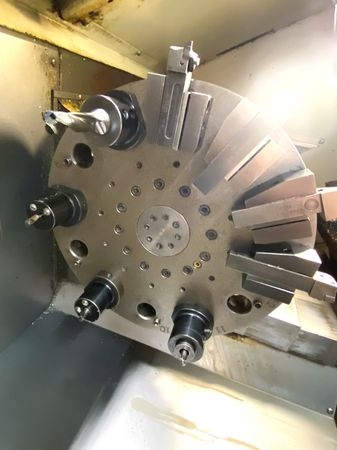

Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 32.5"
Max Swing: 20.5"
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-6
Max Rating 30hp
Max Speed 3400 rpm
Max Torque 300 ft-lbf
Max Torque w/opt Gearbox
Spindle Bore 3.5"
Weight: 14,300 LBS

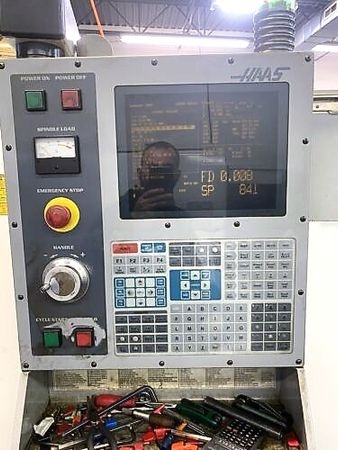

HAAS CNC Control
Tool Presetter

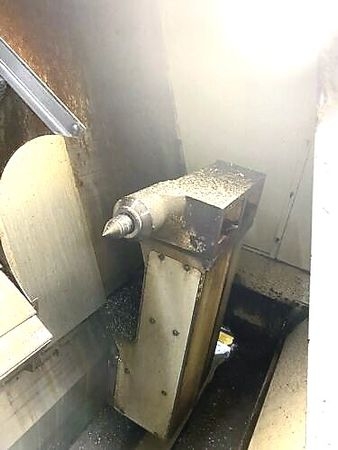

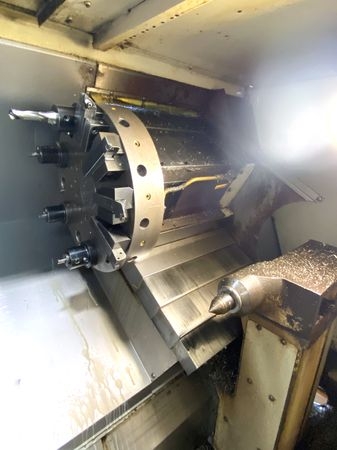

Tailstock
