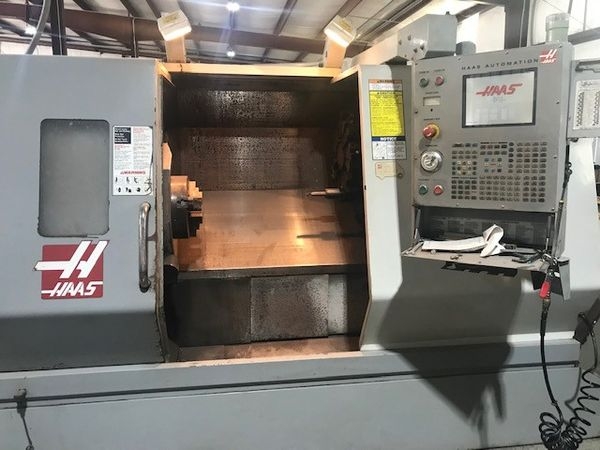

Used HAAS SL30T CNC Lathe
Pre-owned Haas SL30T CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This Haas CNC Lathe is available for a limited time. Get a quote today on this Haas SL30T before it's gone.
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 32.5"
Max Swing: 20.5"
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-6
Max Rating 30hp
Max Speed 3400 rpm
Max Torque 300 ft-lbf
Max Torque w/opt Gearbox
Spindle Bore 3.5"
Dimensions: 171" x 90" x 98"
Weight: 14,300 LBS
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 32.5"
Max Swing: 20.5"
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-6
Max Rating 30hp
Max Speed 3400 rpm
Max Torque 300 ft-lbf
Max Torque w/opt Gearbox
Spindle Bore 3.5"
Dimensions: 171" x 90" x 98"
Weight: 14,300 LBS
Options:
Chip Conveyor
Tool Presetter
Tailstock
Tool Presetter
Tailstock
Owner:
Don (Machine Shop in USA)
