Home / CNC Lathe / HAAS / SL30T / 8503
Posted By MikeC798
us-flag
Located In California
SHIPPING COST :
Hello!

Machine Overview

Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 32.5"
Max Swing: 20.5"
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-6
Max Rating 30hp
Max Speed 3400 rpm
Max Torque 300 ft-lbf
Max Torque w/opt Gearbox
Spindle Bore 3.5"
Dimensions: 171" x 90" x 98"
Weight: 14,300 LBS
Options:
HAAS CNC Control
Chip Conveyor
Tool Presetter
Tailstock
Bar Feeder
Parts Catcher
Live Tooling
Full C-Axis
2-Speed Gear Drive
Description:

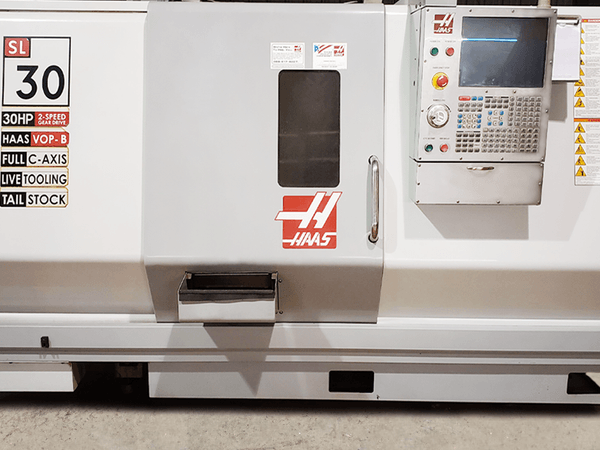

Title: 2008 HAAS SL30T CNC Lathe for Sale with Live Tooling, Chip Conveyor, and More Description: Up for sale is a 2008 HAAS SL30T CNC lathe, a versatile and robust machine designed to handle a wide range of cutting applications. This used CNC lathe is located in Northern California and has been utilized for the past 6-7 years to produce 1000 pieces of steel plumb bobs a few times each year. The owner's one specific part/purpose for the machine has come to an end, which is why they are now looking to sell. Hours: Please refer to the attached photo for a detailed view of the hours. Machine Highlights: - HAAS CNC Control for seamless operation - 10" Chuck Size - 3" Bar Capacity - 3,400 RPM Spindle Speed - 30 HP Spindle Motor - 12-Station Turret for tool storage - 9.4" X-axis and 32.5" Z-axis travel - 945 IPM Rapid Rate for both X and Z axes - 15" Max Turning Diameter and 32.5" Max Turning Length - 20.5" Max Swing - A2-6 Spindle Nose with 3.5" Spindle Bore - Overall dimensions of 171" x 90" x 98", and machine weight of 14,300 lbs Included Options and Upgrades: - Chip Conveyor for efficient removal of chips from the machine - Tool Presetter for precise tool measurement - Tailstock for added support during cutting operations - Bar Feeder for quick and easy loading of materials - Parts Catcher to collect finished parts - Live Tooling for milling capabilities - Servo Bar 300 bar feeder system - 1/2 yard Hippo Hopper to easily manage chip disposal Noteworthy Details: There have been no significant issues with this CNC lathe, with only an encountered capacitor board error in 2020. The owner disconnected the board, which they believe is responsible for voltage monitoring between phases. The machine operates using a rotary phase converter. It's worth noting that the built-in probe and live tooling features have not been extensively used by the current owner, though they believe everything should be in working order. Potential buyers interested in these features are encouraged to further investigate their functionality. The machine is located in a rural area with a challenging road. A short trailer is highly recommended for transportation purposes. Summary: This 2008 HAAS SL30T CNC lathe is a solid machine that has been used for limited production runs over the past several years. With plenty of additional options and upgrades, it offers great potential for a wide range of projects. Don't miss out on this opportunity to acquire a robust and versatile CNC lathe at an affordable price.
