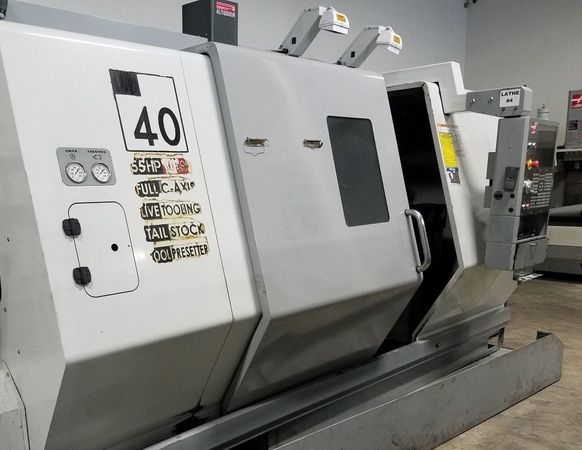

Used HAAS SL40TM CNC Lathe
Pre-owned HAAS SL40TM 2004 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Haas CNC Control "2008 Version Upgrade" control. This CNC Machine is currently located in Illinois. This HAAS CNC Lathe is available for a limited time. Get a quote today on this SL40TM before it's gone.
Specs:
Bar Capacity: 4"
Chuck Size: 15"
Spindle Speed: 2,400 RPM
Spindle Motor: 55 HP
X Axis Travel: 17"
Z Axis Travel: 44"
Rapid Rate Z Axis: 710 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 710 IPM
Max Turning Dia: 25.5"
Max Turning Length: 44"
Max Swing: 40"
C-Axis
Live Milling
Hybrid Turret
Dimensions: 217" x 96" x 105"
Weight: 25,900 LBS
Chuck Size: 15"
Spindle Speed: 2,400 RPM
Spindle Motor: 55 HP
X Axis Travel: 17"
Z Axis Travel: 44"
Rapid Rate Z Axis: 710 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 710 IPM
Max Turning Dia: 25.5"
Max Turning Length: 44"
Max Swing: 40"
C-Axis
Live Milling
Hybrid Turret
Dimensions: 217" x 96" x 105"
Weight: 25,900 LBS
Options:
Haas CNC Control "2008 Version Upgrade"
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
High Intensity Lighting
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
High Intensity Lighting
Owner:
Cris (Located in IL)
