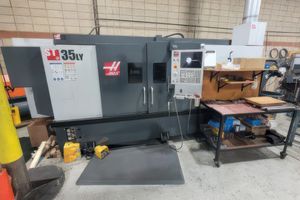

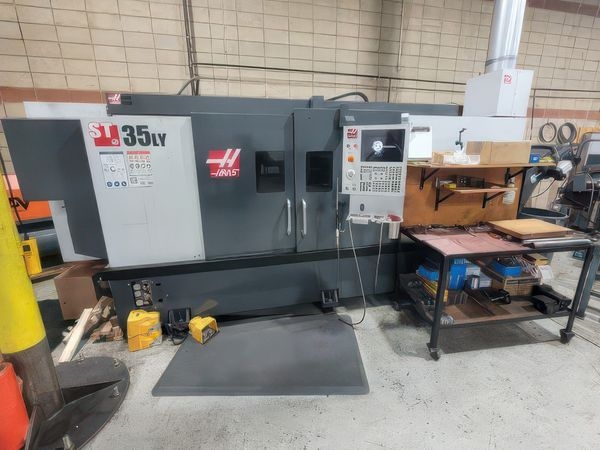

2020 HAAS ST35Y

This 2020 HAAS ST35Y comes with essential options including a Chip Conveyor, Tool Presetter, Live Tooling, Y Axis, and 5 Axis capabilities. It's a versatile machine for diverse lathe operations.

The specifications of this machine are notable. It offers a swing over the front apron, cross slide, and tailstock of 20.5 inches. The chuck size is 12 inches, and it has a bar capacity of 4 inches. It can accommodate a maximum cutting diameter with a BMT turret of 12 inches, and the maximum cutting length, which varies with workholding, is 62.5 inches. The X Axis travel extends to 9.4 inches, Y Axis to 2.0 inches, and Z Axis to 62.5 inches.

The machine also offers impressive rapid movements with X and Y axes at 472 IPM, while the Z axis reaches 945 IPM. The spindle has a max rating of 40 HP, with a speed reaching up to 2,400 RPM. The spindle nose features A2-8 and has a bore of 4.62 inches, while the main spindle C axis max rating is 5 HP with rotational accuracy at 0.01. For live tooling, it provides a max speed of 6,000 RPM. The machine uses BMT65 tooling with a 24-station turret.

Equipped with the Haas CNC control, this machine features a 2-speed gearbox and a 6,000 RPM live tooling speed upgrade. It includes a Y Axis and a 24-station (half-index) turret. The automatic tool presetter, programmable hydraulic tailstock, and belt-type chip conveyor are included for ease of operation. Additionally, the automatic coolant refill system, enclosure exhaust system, coolant oil tank skimmer, auto door, tool load monitoring, and rigid tapping contribute to its comprehensive features.

This HAAS ST35Y is designed to handle demanding machining tasks while offering a range of features for enhanced flexibility and efficiency. It's a robust choice for those in need of a multifunctional turning center with a wide array of modern machine features.
