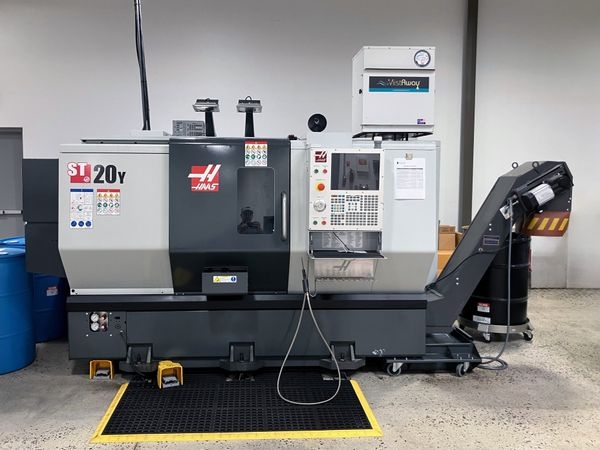

This 2018 HAAS ST20Y CNC Lathe offers advanced machinery capabilities for any machine shop, in its current pristine condition with only 321 hours under power. Equipped with the Haas Next Gen CNC Control, the lathe ensure...Read More
Notify Me:
Specs:
Bar Capacity: 2.5"
Spindle Bore: 2"
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: "
Max Turning Length: 21"
Max Swing: 21"
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 945 ipm
Coolant Capacity: 55 gal
Dimensions:
Weight: 10,500 LBS
Spindle Bore: 2"
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: "
Max Turning Length: 21"
Max Swing: 21"
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 945 ipm
Coolant Capacity: 55 gal
Dimensions:
Weight: 10,500 LBS
Options:
HAAS CNC
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Live Tooling
Y Axis
5 Axis
Mistaway Mist Collector
Royal Collet Chuck included
Universal 3 jaw chuck w/ 2" bore thru included
Assortment of Tooling included
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Live Tooling
Y Axis
5 Axis
Mistaway Mist Collector
Royal Collet Chuck included
Universal 3 jaw chuck w/ 2" bore thru included
Assortment of Tooling included
