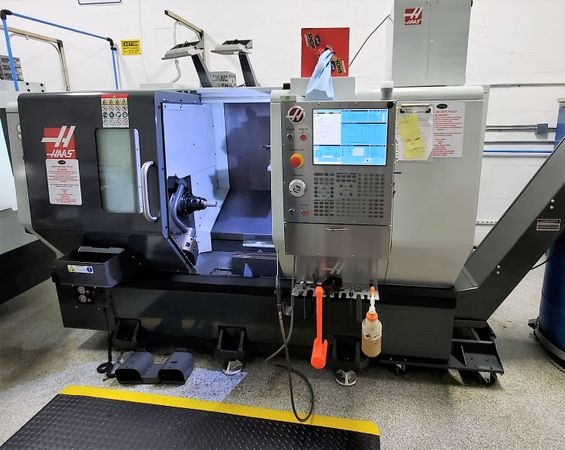

Pre-owned HAAS ST20Y 2018 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limited time. Get a quote ...Read More
Rigging:
$600
Specs:
Bar Capacity: 2"
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y Axis Travel: -/+ 2"
Live Tooling: 4,000RPM
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Length: 21"
Max Swing: 31.75"
Rapids on X 472 ipm
Rapids on Y 472 ipm
Rapids on Z 945 ipm
Coolant Capacity: 55 gal
Dimensions: 143" x 90" x 87"
Weight: 10,500 LBS
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y Axis Travel: -/+ 2"
Live Tooling: 4,000RPM
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Length: 21"
Max Swing: 31.75"
Rapids on X 472 ipm
Rapids on Y 472 ipm
Rapids on Z 945 ipm
Coolant Capacity: 55 gal
Dimensions: 143" x 90" x 87"
Weight: 10,500 LBS
Options:
Haas Next Gen CNC Control

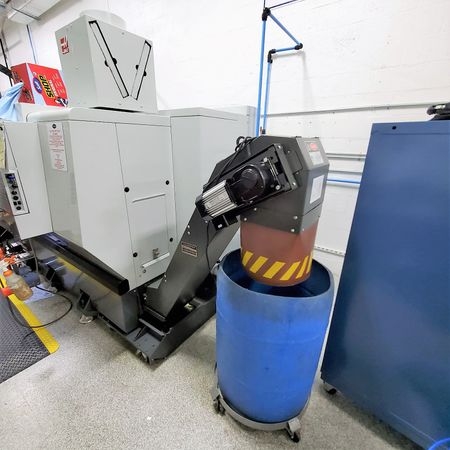

Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Live Tooling
Y Axis
5 Axis

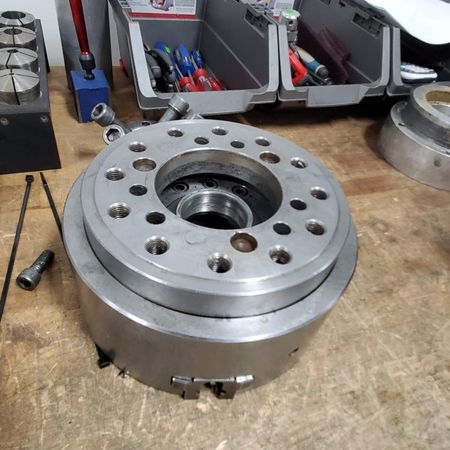

10" Hyd Chuck Included (Collet Chuck Not Included needs for new ST30Y)
Tooling in pictures and video not included
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Live Tooling
Y Axis
5 Axis
10" Hyd Chuck Included (Collet Chuck Not Included needs for new ST30Y)
Tooling in pictures and video not included
