Hello!

Machine Overview

Specs:
Max Turning Length: 21"
Max Swing: 21"
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y Axis Travel: -/+ 2"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
Live Tooling: 4,000RPM
Bar Capacity: 2.5"
Chuck Size: 8.3"
Turret Positions: 12 Station
Rapid Rate XY-Axes: 472 ipm
Rapid Rate Z-Axis: 945 ipm

EQUIPPED WITH:
Haas NextGen CNC Control
Live Tooling
Y-Axis and Full "C" Axis
Sub-Spindle
Wireless Intuitive Probing System
Tool Presetter
Parts Catcher
Chip Conveyor
Auto Door
Enclosure Exhaust System
Rigid Tap
USB Port
Ethernet, Spindle Orientation,
Haas Connect Remote Monitoring
Early Power Failure Detection Module

(3) Live Tool holders
8" Chuck on Main
5" Chuck on Sub-Spindle

Dimensions: 143" x 90" x 87"
Weight: 10,500 LBS
Options:
Haas Next Gen CNC Control
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
Description:

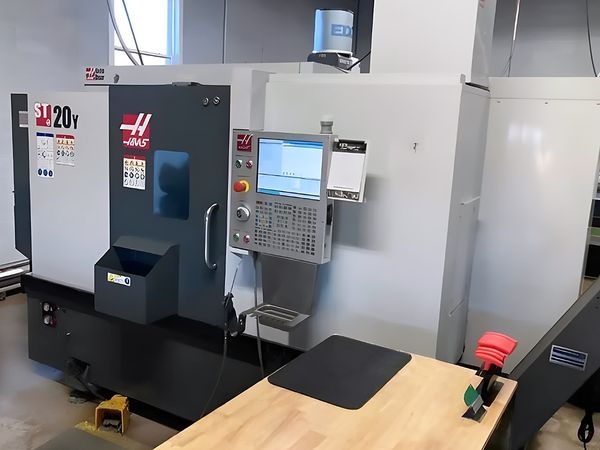

Pre-owned 2019 HAAS ST20Y CNC Lathe. This CNC Lathe has below-average cutting time and is equipped with a Haas Next Gen CNC Control control. It also has Live tooling, Y-Axis, sub spindle, tool presetter, parts catcher, chip conveyor and more!! This CNC Machine is currently located in Pennsylvania. This HAAS CNC Turning Center is available for a limited time. Get a quote today on this ST20Y before it's gone.
