Machine Overview

Specs:
Bar Capacity: 2.5"
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y Axis Travel: -/+ 2"
Live Tooling: 4,000RPM
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Length: 21"
Max Swing: 31.75"
Rapids on X 472 ipm
Rapids on Y 472 ipm
Rapids on Z 945 ipm
Coolant Capacity: 55 gal
Dimensions: 143" x 90" x 87"
Weight: 10,500 LBS
Options:
Haas Next Gen CNC Control
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
Y Axis
5 Axis
Description:

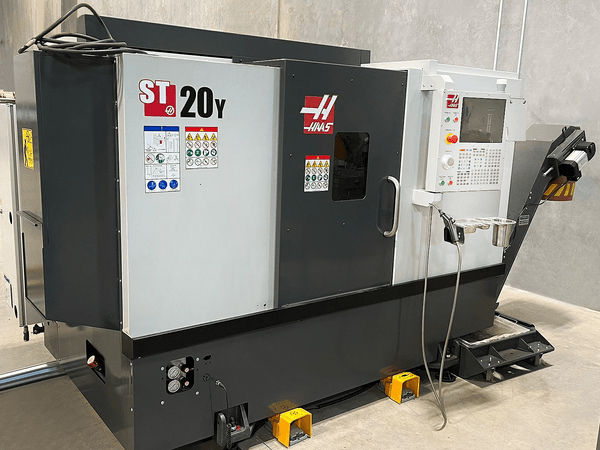

On offer is a pre-owned 2021 HAAS ST20Y CNC Lathe, a machine recognized for its advanced and precise lathing capabilities. This piece of machinery finds itself seeking new ownership following the non-execution of an anticipated production project. Initially purchased for part preparation by a distributor, the project did not commence, rendering this machine surplus to current requirements. For those seeking immediate availability, it's important to note that this machine is ready for purchase and use without any delays. Located in North Carolina, the machine can be viewed and picked up as per any prospective new owner's convenience. The condition mirrors its brief usage period, demonstrating an almost-new like appearance and functionality, despite being a few months old. With a build date of October 2021, the machine has been maintained well, resonating well with HAAS' reputation for long-lasting and robust construction. The sophisticated CNC Control system, the Haas Next Gen, is at the heart of operations in this machine. It optimizes production runs, being as straightforward as it is innovative, delivering excellent precision and easy operation for any machinist. This machine features a variety of optional and premium add-ons inclusive of a Chip Conveyor, Tool Presetter, Tailstock, Live Tooling with 4,000 RPM, Y Axis- offering a -/+ 2" travel, and 5 Axis. Its noteworthiness is even more enhanced by a significant 2.5" bar capacity and an 8.3" chuck size. It hosts a spindle speed of 4,000 RPM, powered by a robust 20 HP spindle motor. Not forgetting the travel capabilities, we're looking at 9.3" on the X-Axis, and 21" on both the Z Axis and Max Turning Length. The lathe also boasts 12 turret tools, with an overall max swing of 31.75". The rapid rates are 945 IPM on the Z Axis, and 472 IPM on both the X and Y Axis. Featuring a colossal coolant capacity of 55 gallons, the CNC lathe ensures long, uninterrupted runs. Its dimensions read 143" x 90" x 87", fitting into a considerable workspace, and it weighs a total of 10,500 LBS. In summary, this 2021 HAAS ST20Y CNC Lathe promises to be a highly advantageous addition to your production line, offering top-tier lathe services in like-new condition and immediate availability. Its location in North Carolina readily awaits an interested buyer to take advantage of this promising offer.
