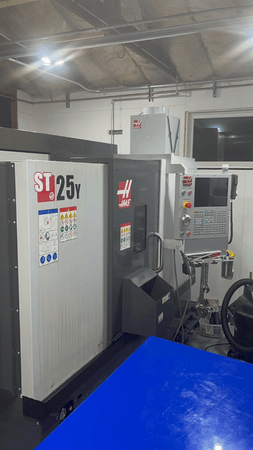

Pre-owned HAAS ST25Y 2021 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Haas Next Gen CNC Control control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limit...Read More
Notify Me:
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y Axis Travel: +/-2"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11.75"
Max Turning Length: 21"
Max Swing: 31.75"
Max Thrust X 4100 lbf
Max Thrust Y 2300 lbf
Max Thrust Z 5100 lbf
Dimensions: 112" x 115" x 81"
Weight: 14,000 LBS
Power on time: 909
Cycle time: 268
Servo time: 102
Feed time: 120
Built 03/21 - Installed 08/21
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y Axis Travel: +/-2"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11.75"
Max Turning Length: 21"
Max Swing: 31.75"
Max Thrust X 4100 lbf
Max Thrust Y 2300 lbf
Max Thrust Z 5100 lbf
Dimensions: 112" x 115" x 81"
Weight: 14,000 LBS
Power on time: 909
Cycle time: 268
Servo time: 102
Feed time: 120
Built 03/21 - Installed 08/21
Options:
Haas Next Gen CNC Control
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
6000 RPM Upgrade For Live Tooling ($2,395)
A2-5 Finishing Sub Spindle ($25,195)
Chuck Air Blast ($1,095)
Sub Spindle Air Blast ($1,095)
Enclosure Exhaust System ($1,895)
Automatic Coolant Refill ($1,395)
Auxiliary Coolant Filter ($2,595)
Coolant Tank Oil Skimmer ($595)
Auto Door ($1,995)
Remote Jog Handle ($1,295)
High Pressure Coolant ($7,395)
Spindle Liner Adapter
Spindle Liner Set
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
6000 RPM Upgrade For Live Tooling ($2,395)
A2-5 Finishing Sub Spindle ($25,195)
Chuck Air Blast ($1,095)
Sub Spindle Air Blast ($1,095)
Enclosure Exhaust System ($1,895)
Automatic Coolant Refill ($1,395)
Auxiliary Coolant Filter ($2,595)
Coolant Tank Oil Skimmer ($595)
Auto Door ($1,995)
Remote Jog Handle ($1,295)
High Pressure Coolant ($7,395)
Spindle Liner Adapter
Spindle Liner Set
