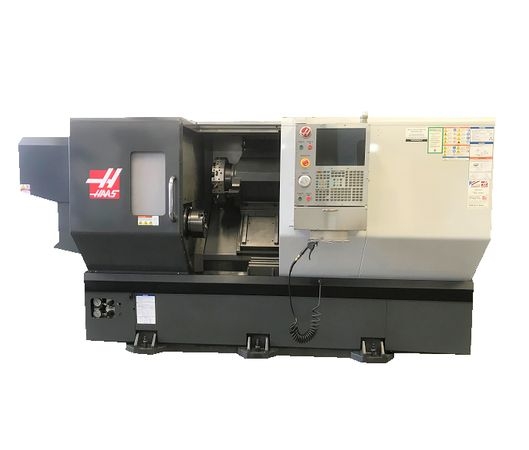

Used HAAS ST30 CNC Lathe
Pre-owned HAAS ST30 2011 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Florida. This HAAS CNC Lathe is available for a limited time. Get a quote today on this ST30 before it's gone.
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Motor: 30 HP
Spindle Speed: 3,400 RPM
X Axis Travel: 12.5"
Z Axis Travel: 26"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 21"
Max Turning Length: 26"
Max Swing: 31"
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-6
Max Torque 300 ft-lbf
Spindle Bore 3.5"
Coolant Cap 55 gal
Dimensions: 171" x 90" x 98"
Weight: 14,300 LBS
Chuck Size: 10"
Spindle Motor: 30 HP
Spindle Speed: 3,400 RPM
X Axis Travel: 12.5"
Z Axis Travel: 26"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 21"
Max Turning Length: 26"
Max Swing: 31"
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-6
Max Torque 300 ft-lbf
Spindle Bore 3.5"
Coolant Cap 55 gal
Dimensions: 171" x 90" x 98"
Weight: 14,300 LBS
Options:
HAAS CNC Control
Chip Conveyor
Tailstock
Chip Conveyor
Tailstock
Owner:
Colby (Located in FL)
