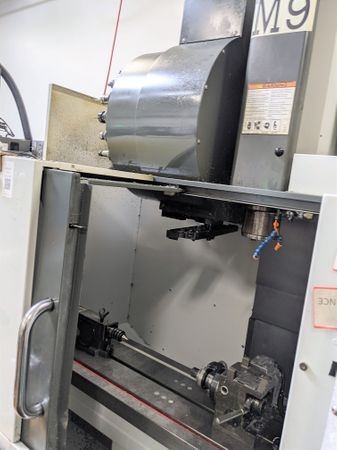

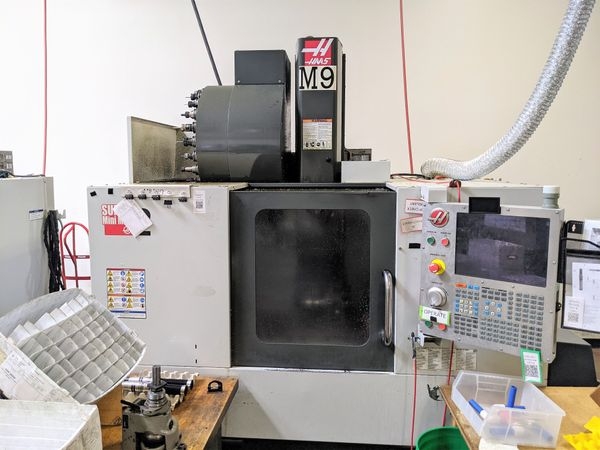

M9 - HAAS SUPER MINI MILL 2 2013 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS Ver...Read More
Rigging:
$1,400
Specs:
Table Size: 40" x 14"
Max Table Load: 500 LBS
X Axis Travel: 20"
Y Axis Travel: 16"
Z Axis Travel: 14"
Spindle Nose to Table Top: 4" - 18"
Spindle Speed: 10,000 RPM
Spindle Taper: CAT40
Spindle Motor: 15 HP
Tool Changer: 10 ATC
Tool Changer Style: Sidemount
Dimensions: 91" x 88" x 100"
Weight: 5,100 LBS
Max Table Load: 500 LBS
X Axis Travel: 20"
Y Axis Travel: 16"
Z Axis Travel: 14"
Spindle Nose to Table Top: 4" - 18"
Spindle Speed: 10,000 RPM
Spindle Taper: CAT40
Spindle Motor: 15 HP
Tool Changer: 10 ATC
Tool Changer Style: Sidemount
Dimensions: 91" x 88" x 100"
Weight: 5,100 LBS
Options:

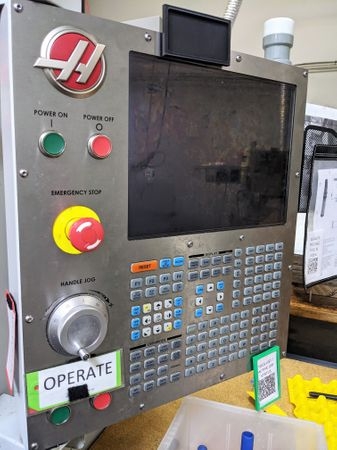

HAAS CNC Control
Probe
Coolant Thru Spindle

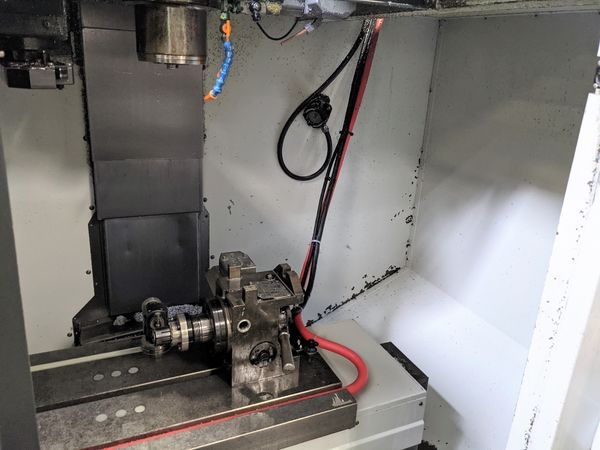

Haas HA5C 4th Axis Indexer
4th Axis Drive
(10) Cat 40 tool holders
W.I.P.S. Wireless Probe System
Programmable Coolant
40 Gallon Coolant Tank
Ethernet
WiFi
Early Power Failure Detection Module
M-Code
Rigid Tapping
1 GB Memory
Spindle Orientation
User-Definable Macros
Coordinate Rotation and Scaling
Visual Part Programming System
New Price: $72,875 USD
Probe
Coolant Thru Spindle
Haas HA5C 4th Axis Indexer
4th Axis Drive
(10) Cat 40 tool holders
W.I.P.S. Wireless Probe System
Programmable Coolant
40 Gallon Coolant Tank
Ethernet
WiFi
Early Power Failure Detection Module
M-Code
Rigid Tapping
1 GB Memory
Spindle Orientation
User-Definable Macros
Coordinate Rotation and Scaling
Visual Part Programming System
New Price: $72,875 USD
