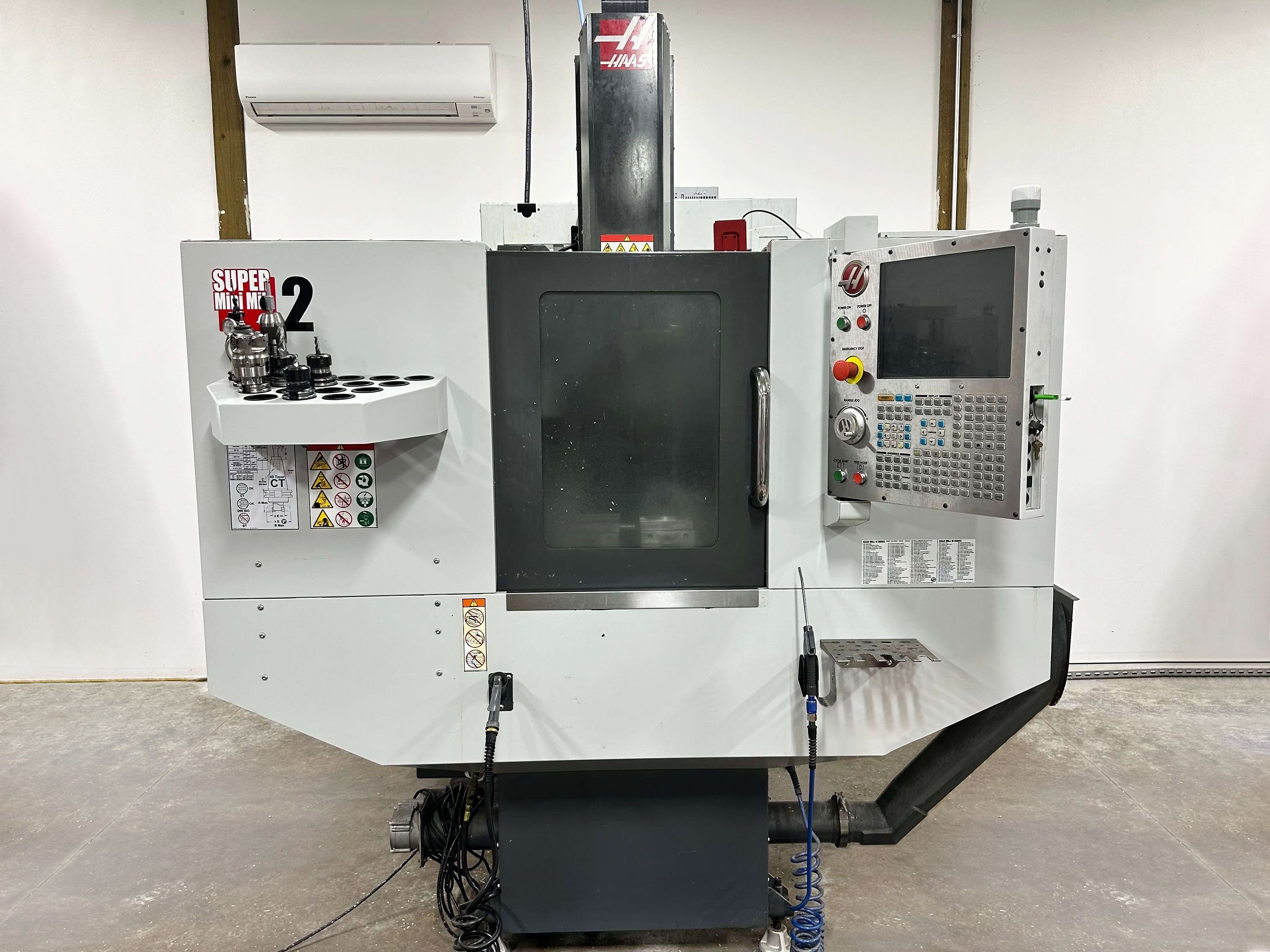

Pre-owned HAAS SUPER MINI MILL 2 2017 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Haas NGC control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this SUPER MINI MILL 2 before it's gone.
Notify Me:
Specs:
X Axis Travel: 20"
Y Axis Travel: 16"
Z Axis Travel: 14"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Table Size:
Max Table Load: 500 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40
Tool Changer: 10 ATC
Max Cutting: 833 IPM
Max Thrust X: 2000 lbf
Max Thrust Y: 2000 lbf
Max Thrust Z: 2000 lbf
Direct Drive Belt Drive
Spindle Nose to Table: 4-18"
Max Tool Diameter (full): 3.5"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 4.5 s
Coolant Capacity: 40 gal
Dimensions:
Weight: 5,100 LBS
Y Axis Travel: 16"
Z Axis Travel: 14"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Table Size:
Max Table Load: 500 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40
Tool Changer: 10 ATC
Max Cutting: 833 IPM
Max Thrust X: 2000 lbf
Max Thrust Y: 2000 lbf
Max Thrust Z: 2000 lbf
Direct Drive Belt Drive
Spindle Nose to Table: 4-18"
Max Tool Diameter (full): 3.5"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 4.5 s
Coolant Capacity: 40 gal
Dimensions:
Weight: 5,100 LBS
Options:
Haas NGC
Chip Conveyor
High Speed Machining
4th Axis Ready
20 Pocket Tool Carousel
Rigid Tapping
Coolant Pump High Flow Kit 3/4HP
Chip Conveyor
High Speed Machining
4th Axis Ready
20 Pocket Tool Carousel
Rigid Tapping
Coolant Pump High Flow Kit 3/4HP
