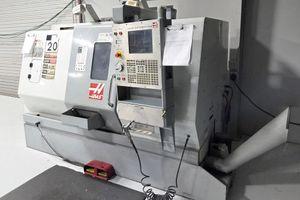

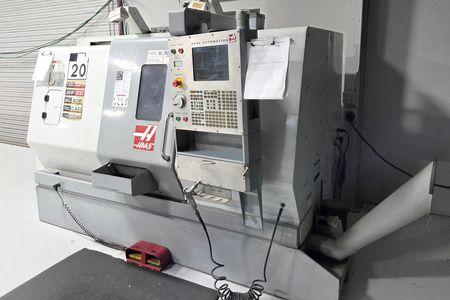

Pre-owned HAAS TL25 2007 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limited time. Get a quote to...Read More
Notify Me:
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 11.3"
Z Axis Travel: 34.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 16"
Max Turning Length: 34"
Max Swing: 30"
LIVE TOOLING:
Turret Capacity: 12 Live Stations
Turret Index Time: 0.2 Second
Live Tool Speed: 3,000 RPM
C Axis: 360°
SUB SPINDLE:
Sub Spindle Bore: 1.18"
Sub Spindle Nose: A2-6
Sub Spindle Speed: 4000 RPM
Sub Spindle Power: 8 HP
Chuck on Sub Spindle: 5"
C Axis: 360°
Dimensions: 190" x 90" x 90"
Weight: 16,800 LBS
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 11.3"
Z Axis Travel: 34.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 16"
Max Turning Length: 34"
Max Swing: 30"
LIVE TOOLING:
Turret Capacity: 12 Live Stations
Turret Index Time: 0.2 Second
Live Tool Speed: 3,000 RPM
C Axis: 360°
SUB SPINDLE:
Sub Spindle Bore: 1.18"
Sub Spindle Nose: A2-6
Sub Spindle Speed: 4000 RPM
Sub Spindle Power: 8 HP
Chuck on Sub Spindle: 5"
C Axis: 360°
Dimensions: 190" x 90" x 90"
Weight: 16,800 LBS
Options:
HAAS CNC Control
Chip Conveyor
Tool Presetter
Tailstock
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Chip Conveyor
Tool Presetter
Tailstock
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
