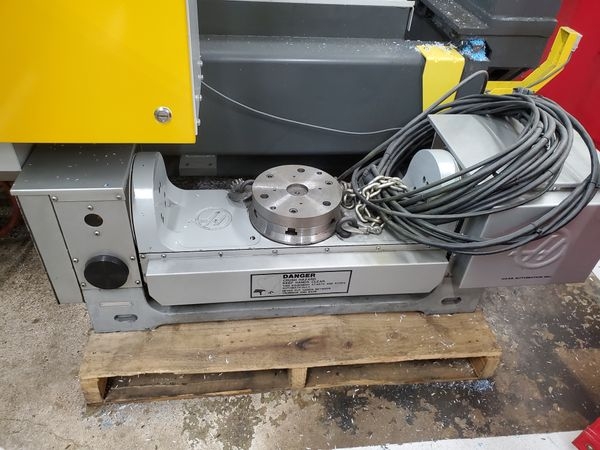

Pre-owned HAAS TR-210H 2008 Tooling and Workholding. This Tooling and Workholding has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Tooling and Workholding is...Read More
Notify Me:
Specs:
PLATTER S.A.E METRIC
Platter Diameter 8.30 in 210 mm
Max Weight on Platter 200 lb 91.0 kg
Part Swing Max 23.5 in 597 mm
Number of Std T-Slots 6 @ 60° 6 @ 60°
SPINDLE - A (TILT) S.A.E METRIC
Max Speed 60 °/sec 60 °/sec
Max Torque 300 ft-lbf 407 Nm
Backlash 30 arc-sec 30 arc-sec
Gear Ratio 90:1 90:1
Timing 2:1 2:1
Brake Torque @ 100 psi/6.9 bar 400 ft-lbf 542 Nm
SPINDLE - B (ROTARY) S.A.E METRIC
Max Speed 60 °/sec 60 °/sec
Max Torque 210 ft-lbf 285 Nm
Runout Max 0.0005 in 0.013 mm
Backlash 30 arc-sec 30 arc-sec
Gear Ratio 90:1 90:1
Timing 2:1 2:1
Brake Torque @ 100 psi/6.9 bar 200 ft-lbf 271 Nm
INDEXING - A (TILT) S.A.E METRIC
Max Rotation/Step ± 120 ° ± 120 °
Resolution 0.001 ° 0.001 °
Accuracy (±) ± 15 arc-sec ± 15 arc-sec
Repeatability 10 arc-sec 10 arc-sec
INDEXING - B (ROTARY) S.A.E METRIC
Max Rotation/Step (with rotary control) 999.999 ° 999.999 °
Resolution 0.001 ° 0.001 °
Repeatability 10 arc-sec 10 arc-sec
GENERAL S.A.E METRIC
Operating Temp (max ambient) 100 °F 38 °C
AIR REQUIREMENTS S.A.E METRIC
Air Pressure Max 150 psi 10.3 bar
DIMENSIONS - SHIPPING S.A.E METRIC
Export Crate 58 in x 23 in x 27 in 148 cm x 59 cm x 69 cm
Weight 810 lb 367.4 kg
Platter Diameter 8.30 in 210 mm
Max Weight on Platter 200 lb 91.0 kg
Part Swing Max 23.5 in 597 mm
Number of Std T-Slots 6 @ 60° 6 @ 60°
SPINDLE - A (TILT) S.A.E METRIC
Max Speed 60 °/sec 60 °/sec
Max Torque 300 ft-lbf 407 Nm
Backlash 30 arc-sec 30 arc-sec
Gear Ratio 90:1 90:1
Timing 2:1 2:1
Brake Torque @ 100 psi/6.9 bar 400 ft-lbf 542 Nm
SPINDLE - B (ROTARY) S.A.E METRIC
Max Speed 60 °/sec 60 °/sec
Max Torque 210 ft-lbf 285 Nm
Runout Max 0.0005 in 0.013 mm
Backlash 30 arc-sec 30 arc-sec
Gear Ratio 90:1 90:1
Timing 2:1 2:1
Brake Torque @ 100 psi/6.9 bar 200 ft-lbf 271 Nm
INDEXING - A (TILT) S.A.E METRIC
Max Rotation/Step ± 120 ° ± 120 °
Resolution 0.001 ° 0.001 °
Accuracy (±) ± 15 arc-sec ± 15 arc-sec
Repeatability 10 arc-sec 10 arc-sec
INDEXING - B (ROTARY) S.A.E METRIC
Max Rotation/Step (with rotary control) 999.999 ° 999.999 °
Resolution 0.001 ° 0.001 °
Repeatability 10 arc-sec 10 arc-sec
GENERAL S.A.E METRIC
Operating Temp (max ambient) 100 °F 38 °C
AIR REQUIREMENTS S.A.E METRIC
Air Pressure Max 150 psi 10.3 bar
DIMENSIONS - SHIPPING S.A.E METRIC
Export Crate 58 in x 23 in x 27 in 148 cm x 59 cm x 69 cm
Weight 810 lb 367.4 kg
