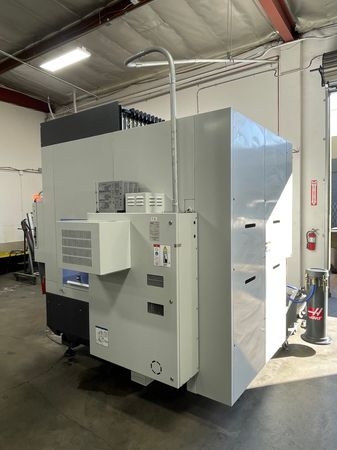

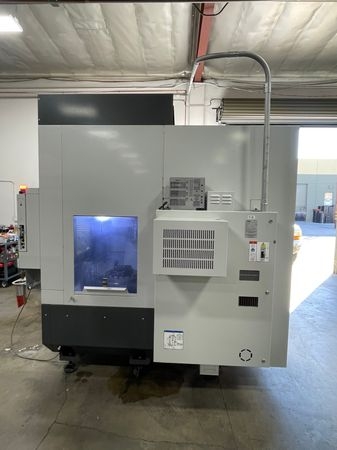

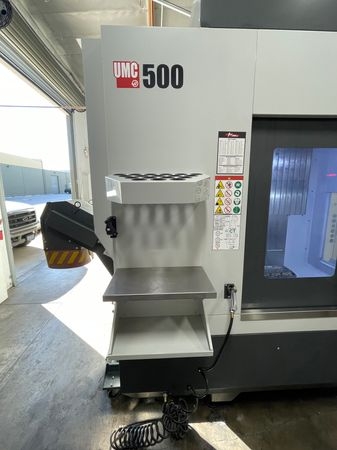

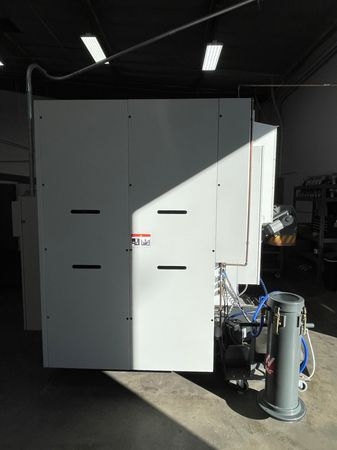

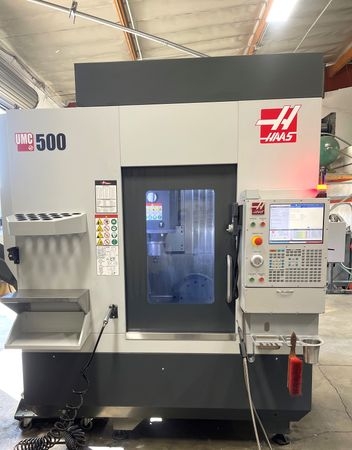

Pre-owned HAAS UMC500 2021 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Cent...Read More
Specs:
X Axis Travel: 24"
Y Axis Travel: 16"
Z Axis Travel: 16"
Rapid Rate X Axis: 900 IPM
Rapid Rate Y Axis: 900 IPM
Rapid Rate Z Axis: 900 IPM
Max Table Load: 500 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT

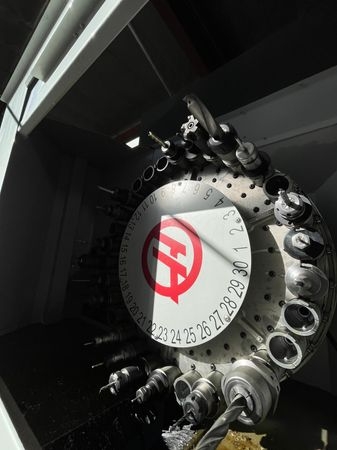

Tool Changer: 30 ATC
Spindle Nose to Platter 4"-20"
B Axis Tilt 120 to -35 deg.
B Axis Rot. Spd. 50 deg. per second
B Axis Torque 1854 ft lb
Max Part Swing 18 in.
Brake Torque 900 ft lb
Max X & Y Axis Thrust 3300 ft lb
Max Z Axis Thrust 4050 ft lb
Max Tool Length 12 in
Max Tool Weight 12 lb
Tool to Tool 2.8 seconds
Chip to Chip 3.6 seconds
Weight: 11,900 LBS
Y Axis Travel: 16"
Z Axis Travel: 16"
Rapid Rate X Axis: 900 IPM
Rapid Rate Y Axis: 900 IPM
Rapid Rate Z Axis: 900 IPM
Max Table Load: 500 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Spindle Nose to Platter 4"-20"
B Axis Tilt 120 to -35 deg.
B Axis Rot. Spd. 50 deg. per second
B Axis Torque 1854 ft lb
Max Part Swing 18 in.
Brake Torque 900 ft lb
Max X & Y Axis Thrust 3300 ft lb
Max Z Axis Thrust 4050 ft lb
Max Tool Length 12 in
Max Tool Weight 12 lb
Tool to Tool 2.8 seconds
Chip to Chip 3.6 seconds
Weight: 11,900 LBS

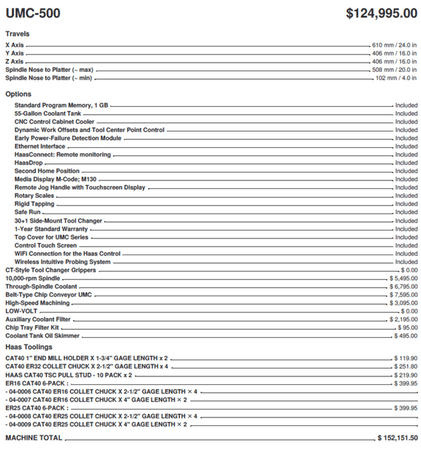

Options:
Haas Next Gen CNC Control
Probe

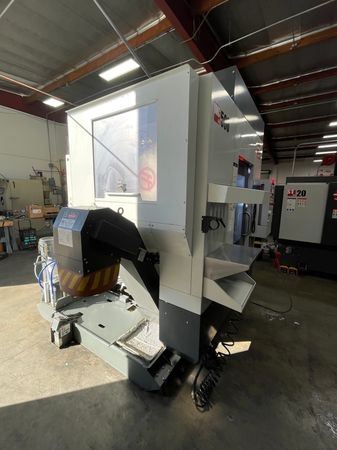

Chip Conveyor
Coolant Thru Spindle

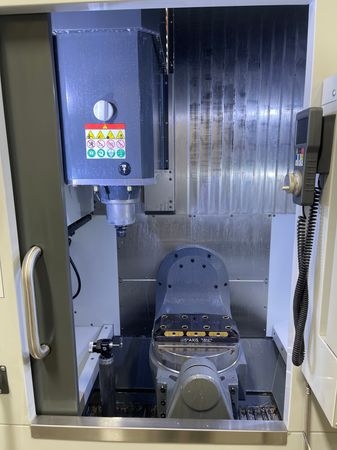

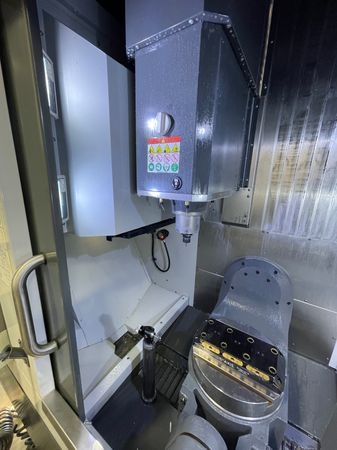

5 Axis
10,000 RPM
High Speed Machining
Auxiliary Coolant Filter
Chip Tray Filter kit
Probe
Chip Conveyor
Coolant Thru Spindle
5 Axis
10,000 RPM
High Speed Machining
Auxiliary Coolant Filter
Chip Tray Filter kit
