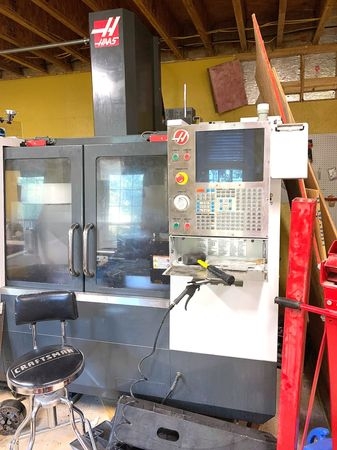

Pre-owned 4 Axis HAAS VF2 2011 Vertical Machining Center. This Vertical Machining Center has very low cutting time with only 22 hours and is equipped with a 2 speed gear head spindle, HRT210 4th axis and HAAS CNC Contr...Read More
Notify Me:
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 36" x 14"
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 8,100 RPM (Gear Box)
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Max Torque 90 ft-lbf
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Dimensions: 101" x 99" x 101"
Weight: 7,800 LBS
HOURS:
Power On 130
Cycle Start 23
Feed Cut 22
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 36" x 14"
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 8,100 RPM (Gear Box)
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Max Torque 90 ft-lbf
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Dimensions: 101" x 99" x 101"
Weight: 7,800 LBS
HOURS:
Power On 130
Cycle Start 23
Feed Cut 22
Options:
HAAS CNC Control
4th Axis Rotary Table
Gear Box Spindle
Chip Auger
4th Axis Drive
HRT210 Rotary Table
High Speed Machining
4th Axis Rotary Table
Gear Box Spindle
Chip Auger
4th Axis Drive
HRT210 Rotary Table
High Speed Machining
