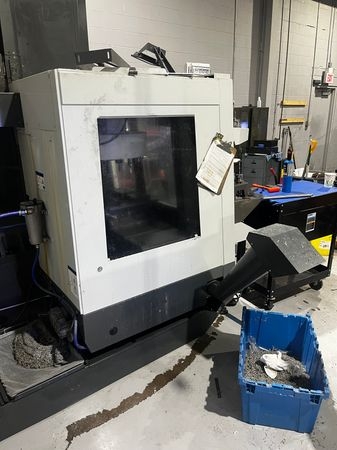

I am pleased to announce the availability of a 2020 HAAS VF2 Vertical Machining Center located right here in New Jersey. The high-functioning condition of this machine merits serious consideration by those in need of a Vertic...Read More

X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Max Torque: 90 ft-lbf
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 4.5 s
Table Size: 36" x 14"
Dimensions: 101" x 99" x 101"
Weight: 7,800 LBS

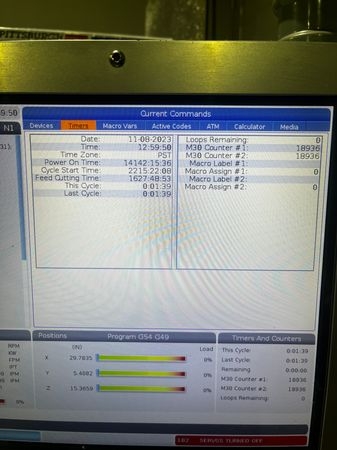

Haas Next Gen CNC Control
Programmable Coolant
10,000 RPM Spindle
2 Speed Gearbox
Through Spindle Coolant Ready
4th Axis Drive & Wiring
Multi Chip Auger
High Intensity Lighting
32 GB Expanded Memory
High Speed Machining
Chip Tray Filter Kit
24V Work Table Light
Visual Part Programming System
User Definable Macros
Window Air Blast
Rigid Tapping
Ethernet Interface
Early Power Failure Detection Module
