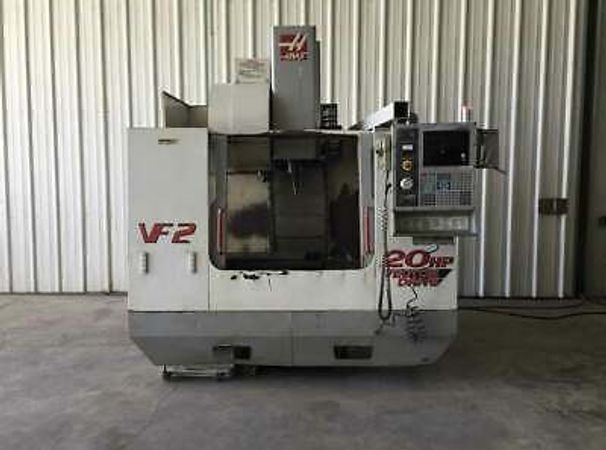

Pre-owned Haas VF2B 2001 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This Haas Vertical Machining ...Read More
Notify Me:
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 36" x 14"
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Max Torque 90 ft-lbf
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Dimensions: 101" x 98" x 102"
Weight: 7,800 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 36" x 14"
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Max Torque 90 ft-lbf
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Dimensions: 101" x 98" x 102"
Weight: 7,800 LBS
