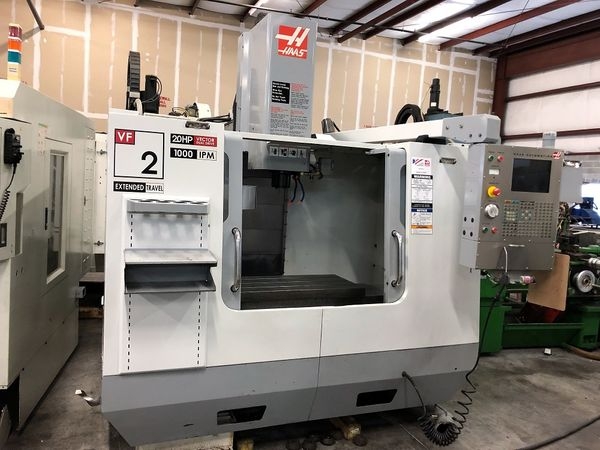

Pre-owned HAAS VF2YT 2006 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Florida. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF2YT before it's gone.
Notify Me:
Specs:
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 36" x 18"
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Torque 90 ft-lbf
Max Cutting 650 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lbs
Tool-to-Tool 4.5 s
Chip-to-Chip 4.5 s
Dimensions: 92" x 100" x 101"
Weight: 7,800 LBS
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 36" x 18"
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Torque 90 ft-lbf
Max Cutting 650 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lbs
Tool-to-Tool 4.5 s
Chip-to-Chip 4.5 s
Dimensions: 92" x 100" x 101"
Weight: 7,800 LBS
Options:
HAAS CNC Control
Programmable Coolant
Programmable Coolant
