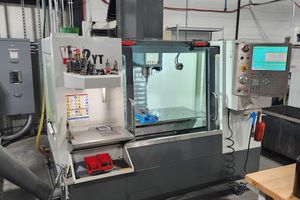

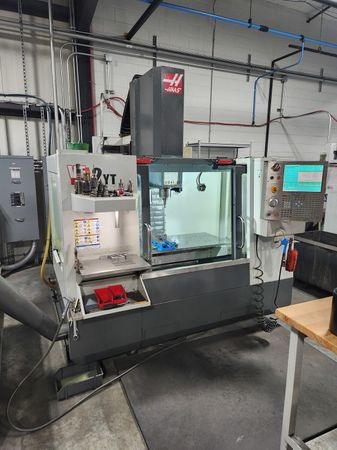

This 2012 HAAS VF2YT Vertical Machining Center is in great condition and has been used for roughly 5,000 hours. It is being sold to upgrade to a larger machine and is located in Chicago, IL. It has a 36" x 18" table size wit...Read More
Notify Me:
Rigging:
$1,500
Specs:
Table Size: 36" x 18"
Max Table Load: 3,500 Lbs.
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Spindle Speed: 8,100 RPM
Spindle Motor: 30 HP
Spindle Taper: 40 CAT
Tool Changer Positions: 20 + 1 ATC
Tool Changer Style: Umbrella
Max Tool Diameter: 3.5"
Max Tool Weigh: 12 lbs
Tool-to-Tool: 4.5 s
Chip-to-Chip: 4.5 s
Equipped With:
Haas CNC Control
Extended Y-Axis Travel
2-Speed Gear Box
W.I.P.S Wireless Probe System
30 H.P. Vector Drive
Remote Jog Handle
Chip Auger
Control Options Include
Spindle Orientation, Rigid Tapping, High Speed Machining,
Macros, Coordinate Rotation & Scaling and More!
Dimensions: 92" x 100" x 101"
Weight: 7,800 LBS
Max Table Load: 3,500 Lbs.
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Spindle Speed: 8,100 RPM
Spindle Motor: 30 HP
Spindle Taper: 40 CAT
Tool Changer Positions: 20 + 1 ATC
Tool Changer Style: Umbrella
Max Tool Diameter: 3.5"
Max Tool Weigh: 12 lbs
Tool-to-Tool: 4.5 s
Chip-to-Chip: 4.5 s
Equipped With:
Haas CNC Control
Extended Y-Axis Travel
2-Speed Gear Box
W.I.P.S Wireless Probe System
30 H.P. Vector Drive
Remote Jog Handle
Chip Auger
Control Options Include
Spindle Orientation, Rigid Tapping, High Speed Machining,
Macros, Coordinate Rotation & Scaling and More!
Dimensions: 92" x 100" x 101"
Weight: 7,800 LBS
Options:
Haas CNC
Probe
Extended Y-Axis
W.I.P.S Probe System
Remote Jog Handle
30 H.P. Vector Drive
Probe
Extended Y-Axis
W.I.P.S Probe System
Remote Jog Handle
30 H.P. Vector Drive
