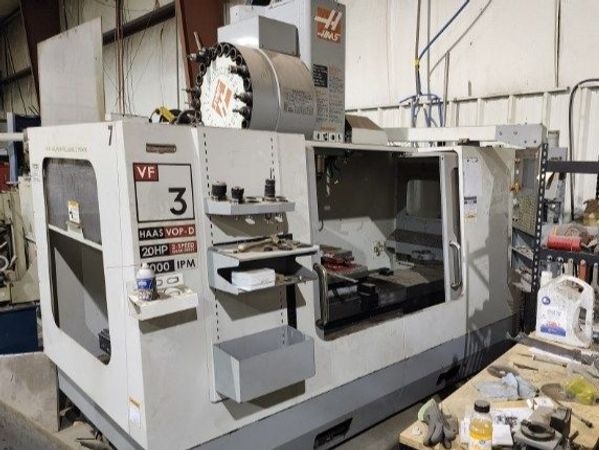

Pre-owned HAAS VF3 APC 2005 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS Vertical ...Read More
Notify Me:
Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Torque 90 ft-lbf
Max Cutting 450 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lbs
Tool-to-Tool 4.2 s
Chip-to-Chip 4.5 s
Dimensions: 131" x 92" x 101"
Weight: 13,500 LBS
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Torque 90 ft-lbf
Max Cutting 450 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lbs
Tool-to-Tool 4.2 s
Chip-to-Chip 4.5 s
Dimensions: 131" x 92" x 101"
Weight: 13,500 LBS
Options:
HAAS CNC Control
Chip Conveyor
Programmable Coolant
4th Axis Rotary Table
Haas HRT210H
Rigid Tapping
Coolant Chip Sweep System
High Intensity Lighting
Pallet Changer
Chip Conveyor
Programmable Coolant
4th Axis Rotary Table
Haas HRT210H
Rigid Tapping
Coolant Chip Sweep System
High Intensity Lighting
Pallet Changer
