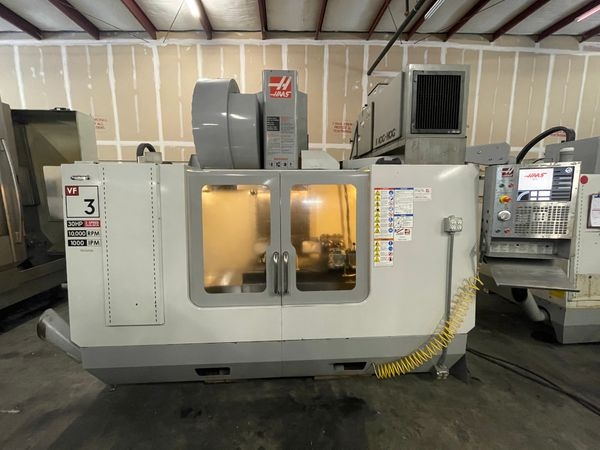

Used HAAS VF3B Vertical Machining Center
Pre-owned HAAS VF3B 2008 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF3B before it's gone.
Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 48" X 18"
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Max Torque 90 ft-lbf
Max Cutting 650 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lbs
Tool-to-Tool 4.2 s
Chip-to-Chip 4.5 s
Dimensions: 131" x 92" x 101"
Weight: 11,720 LBS
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 48" X 18"
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Max Torque 90 ft-lbf
Max Cutting 650 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lbs
Tool-to-Tool 4.2 s
Chip-to-Chip 4.5 s
Dimensions: 131" x 92" x 101"
Weight: 11,720 LBS
Options:
HAAS CNC Control
Programmable Coolant
4th Axis Rotary Table
5 Axis
40 Station ATC
10,000 RPM Spindle
2 Speed Gearbox
1000 IPM Rapids
Mist Collector
(2) Haas HA5C2 Rotary Units
B Axis Drive & Wiring
Chip Auger
Programmable Coolant
4th Axis Rotary Table
5 Axis
40 Station ATC
10,000 RPM Spindle
2 Speed Gearbox
1000 IPM Rapids
Mist Collector
(2) Haas HA5C2 Rotary Units
B Axis Drive & Wiring
Chip Auger
Owner:
Adam (Machine Shop in USA)
