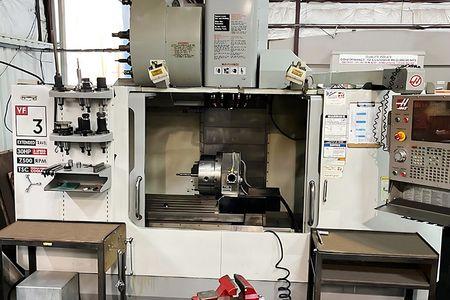

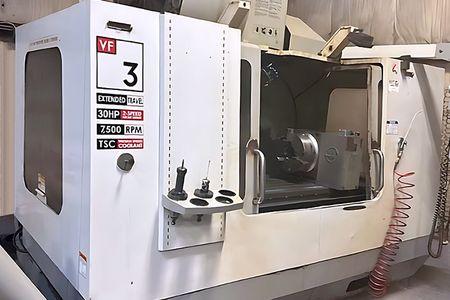

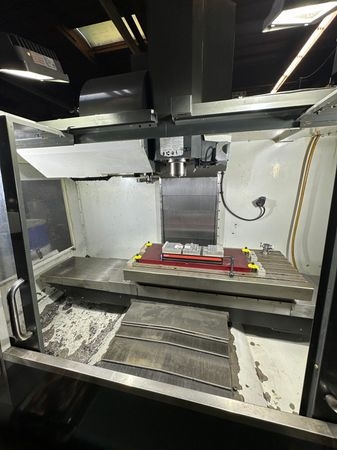

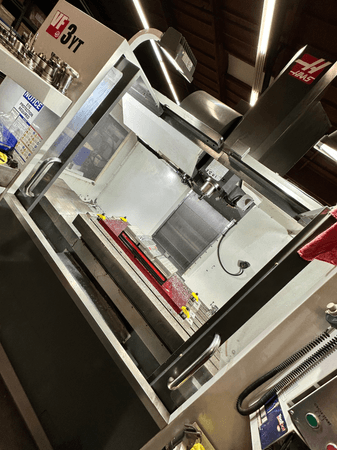

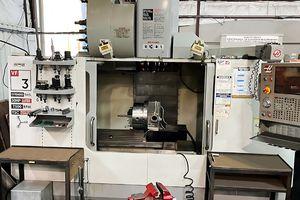

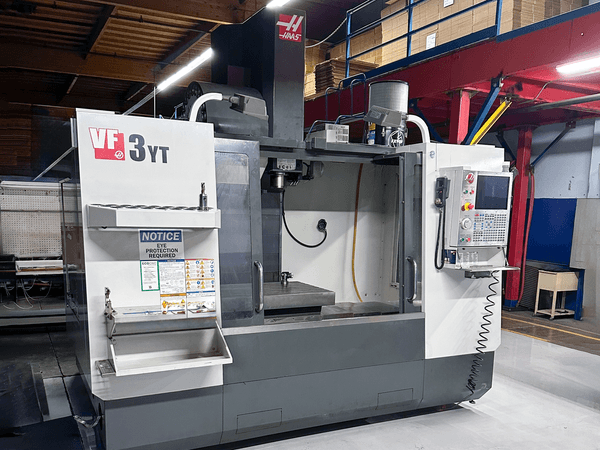

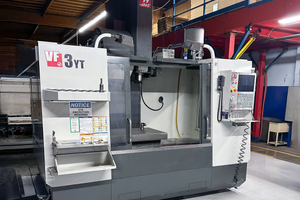

Reserve Met: 2011 HAAS VF3YT #10862

X Axis Travel: 40"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Torque 90 ft-lbf
Max Cutting 500 ipm
Max Thrust X 2550 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 4100 lbf
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Table Size: 54" x 24"
Dimensions: 156" x 102" x 109"
Weight: 15,000 LBS

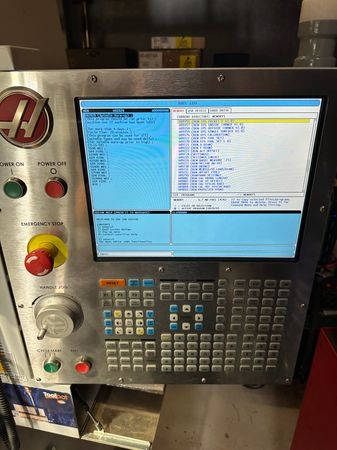

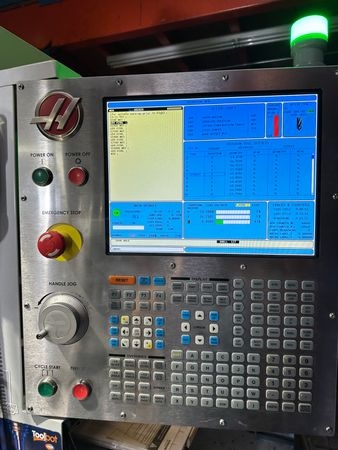

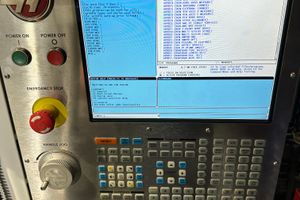

HAAS CNC Control

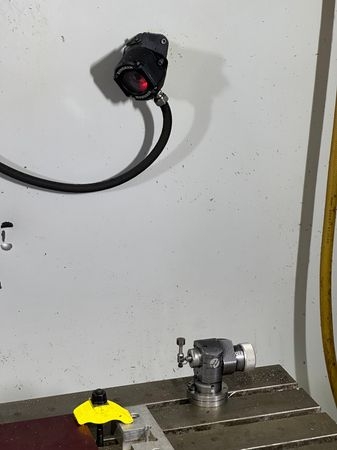

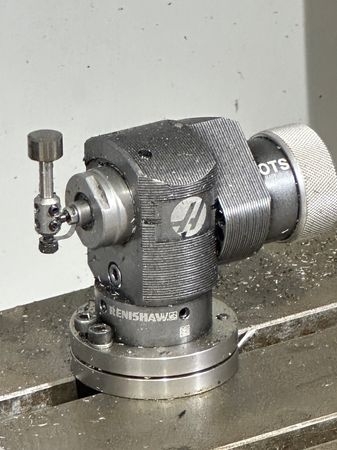

Probe

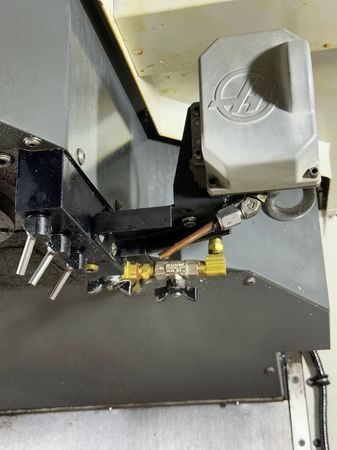

Programmable Coolant
10,000 RPM Spindle
2 Speed Gearbox
Sidemount Tool Changer 24+1

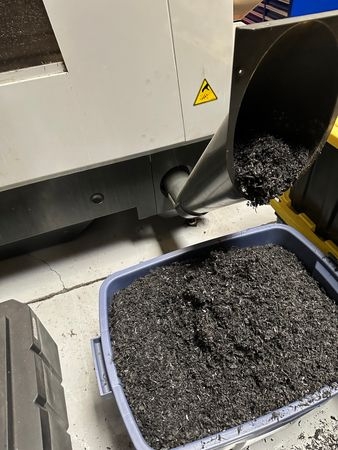

Chip Auger

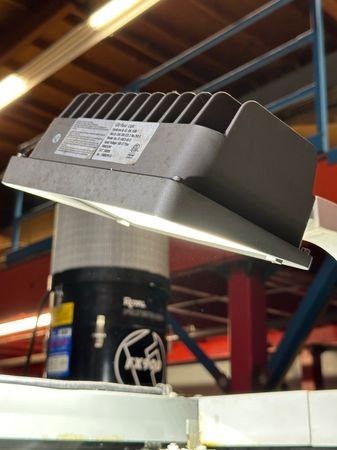

High Intensity Lighting
Early Power Failure Detection Module

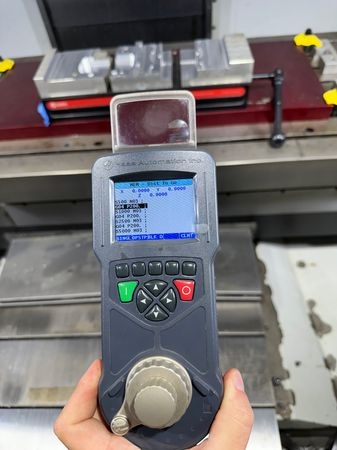

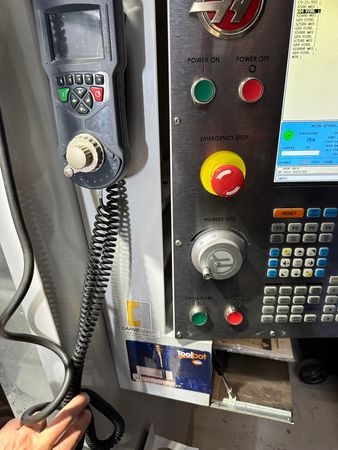

Remote Jog Handle
1 MB Memory
USB Port
Rigid Tapping

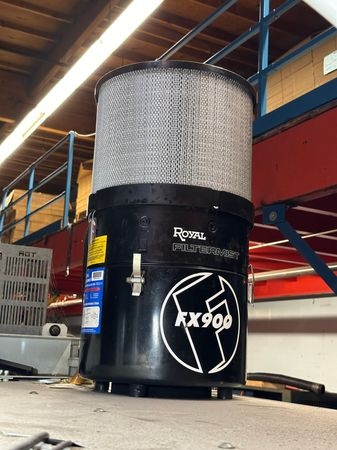

Mist Collector
