Machine Overview

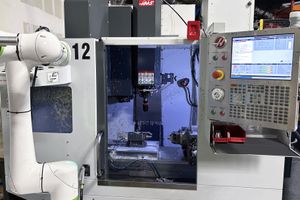

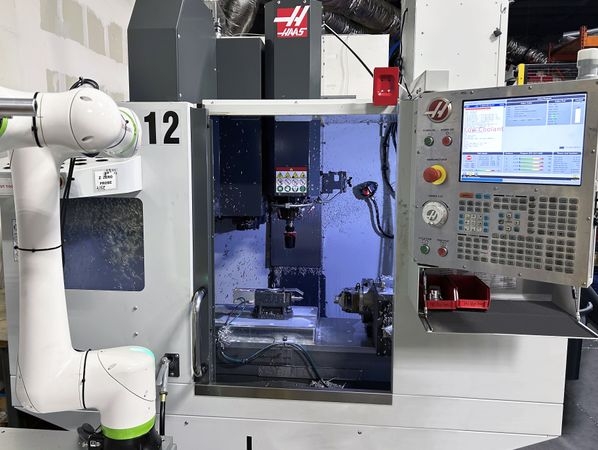

This 2016 HAAS DT2 is ready to enhance your machining operations with its advanced features and capabilities. Tailored for both precision and speed, this machine has been a stalwart in our lineup.
Equipped with a rotary table/trunnion that is wired for a 4th axis, this unit includes a HRT-210 rotary make and model. You can work with a table/pallet size of 34" x 15", offering substantial capacity for various projects. With its impressive X-travel, Y-travel, and Z-travel spans of 28.00", 16.00", and 15.50" respectively, this machine offers flexible movement for diverse machining tasks.
Speed is a clear advantage with a rapid traverse of 2400 IPM and a cutting feed rate of 1200 IPM. Featuring a BT30 spindle taper type, it reaches a spindle speed of up to 15,000 RPM backed by a 15 HP spindle motor. The spindle nose extends from the table top by 6" to 21.5", providing versatile depth options.
The tool magazine supports up to 20 tools, using a side mount tool changer with a swift tool change time of 1.75 seconds. The chip-to-chip time is 2 seconds, so you can minimize downtime between tasks. The control is managed by the Haas CNC Control system, which includes options like rigid tapping and Ethernet/LAN connectivity.
In addition to basic controls, this machine also incorporates the W.I.P.S. system, standard program memory of 1 GB, and HaasConnect for remote monitoring. Other valuable specifications include a convenience package, BT-style tool changer grippers, and a 45-gallon coolant tank, with the machine being ready for thru-spindle coolant use. For efficient chip handling, a chip auger is installed.
This HAAS DT2 is a practical choice for your workshop, poised to handle a broad range of machining operations with ease and adaptability.
