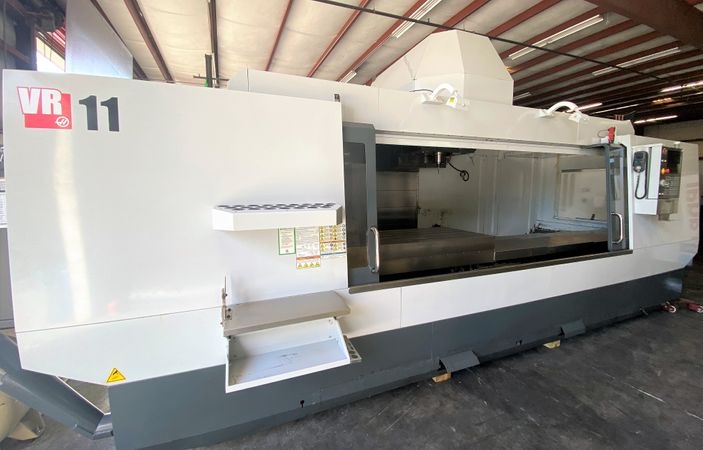

Used HAAS VR11 Vertical Machining Center
Pre-owned HAAS VR11 2011 Vertical Machining Center for only $NaN. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in KS. This HAAS Vertical Machining Center is the only one in stock and available for a limited time. Get a quote today on this VR11 before it's gone.
Y Axis Travel: 40"
Z Axis Travel: 30"
Rapid Rate X Axis: 360 IPM
Rapid Rate Y Axis: 500 IPM
Rapid Rate Z Axis: 500 IPM
Table Size: 120" X 28"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 32 ATC
Max Tool Diameter (full) 2.5 in
Max Tool Diameter (adjacent empty) 5.0 in
Max Tool Length (from gage line) 12 in
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s 2.8 s
Chip-to-Chip (avg) 3.6 s 3.6 s
Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
Dimensions: 288 in x 120 in x 136 in
Weight: 32,500 LBS
Coolant Thru Spindle
Wireless Intuitive Probing System
High Intensity Lighting
Internal High-Voltage Isolated Transformer
Early Power Failure Detection Module
